HM1F41TAP000H6LF

Active

Amphenol ICC (FCI)

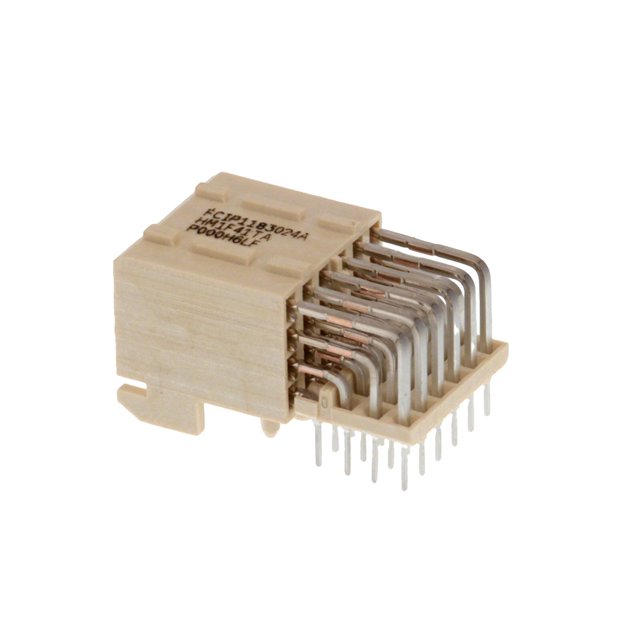

CONN RCPT HIGH SPEED 24P EDGE MT

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 24P EDGE MT

Technical Specifications

Parameters and characteristics for this part

Specification	HM1F41TAP000H6LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Spacer, Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	24
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder
Voltage Rating	1000 VDC

Part	Number of Positions	Contact Finish	Termination	Connector Type	Color	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Material Flammability Rating	Mounting Type	Features	Pitch [x]	Pitch [x]	Number of Positions Loaded	Current Rating (Amps)
Amphenol ICC (FCI) HM1F41TAP000H6LF	24	Gold	Solder	Receptacle Female Sockets	Natural	1000 VDC	105 ░C	-55 °C	0.76 Ám	30 Áin	High Speed	UL94 V-0	Board Edge Right Angle Through Hole	Board Guide Spacer	0.079 in	2 mm	All
Amphenol ICC (FCI) HM1F41FDP131H6LF	12		Press-Fit	Receptacle Female Sockets	Natural		125 °C	-55 °C			Blade Power	UL94 V-0	Board Edge Right Angle Through Hole	Board Guide	0.079 in	2 mm	All	1.5 A
Amphenol ICC (FCI) HM1F41TAPC61H6LF	24	Gold or Gold GXT™	Solder	Receptacle Female Sockets	Natural				0.76 Ám	30 Áin	High Speed		Board Edge Right Angle Through Hole	Board Guide Spacer	0.079 in	2 mm	All
Amphenol ICC (FCI) HM1F41TBP400H6PLF	24	Gold	Press-Fit	Receptacle Female Sockets	Natural				0.76 Ám	30 Áin			Board Edge Right Angle Through Hole	Board Guide Spacer	0.079 in	2 mm	All
Amphenol ICC (FCI) HM1F41TBP000H6LF	24	Gold	Solder	Receptacle Female Sockets	Natural	1000 VDC	85 °C	-55 °C	0.75 µm	29.5 µin	High Speed	UL94 V-0	Board Edge Right Angle Through Hole	Board Guide Spacer	0.079 in	2 mm	All

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1536	$ 2.42

General part information

24 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Natural High Speed
