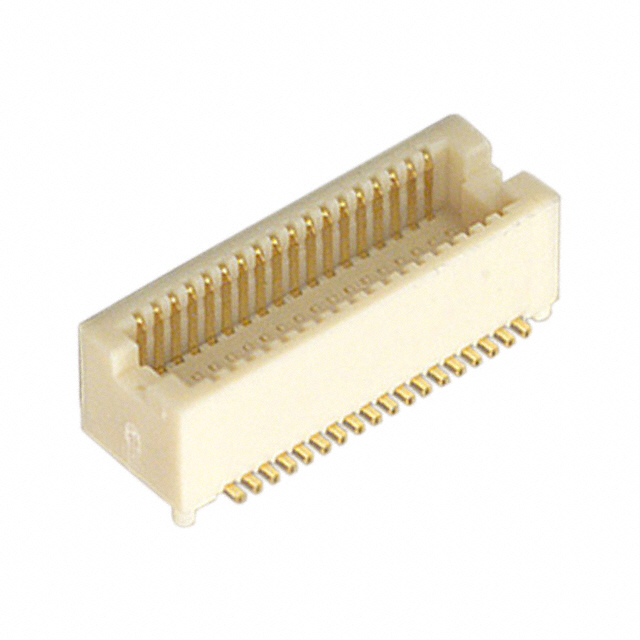

DF12D(4.0)-36DP-0.5V(81)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 36POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 36POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12D(4.0)-36DP-0.5V(81)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights	4 mm
Mounting Type	Surface Mount
Number of Positions	36
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Height Above Board	Height Above Board	Mounting Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Connector Type	Features	Mated Stacking Heights	Number of Positions
Hirose Electric USA, Inc. DF12D(4.0)-60DP-0.5V(81)	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	60
Hirose Electric USA, Inc. DF12D(4.0)-20DP-0.5V(81)	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	20
Hirose Electric USA, Inc. DF12D(4.0)40DP0.5V80	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	40
Hirose Electric USA, Inc. DF12D(4.0)30DP0.5V80	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	30
Hirose Electric USA, Inc. DF12D(4.0)-40DP-0.5V(81)	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	40
Hirose Electric USA, Inc. DF12D(4.0)-36DP-0.5V(81)	0.13 in	3.3 mm	Surface Mount	Gold	0.5 mm	0.02 in	2	Header Outer Shroud Contacts	Board Guide	4 mm	36
