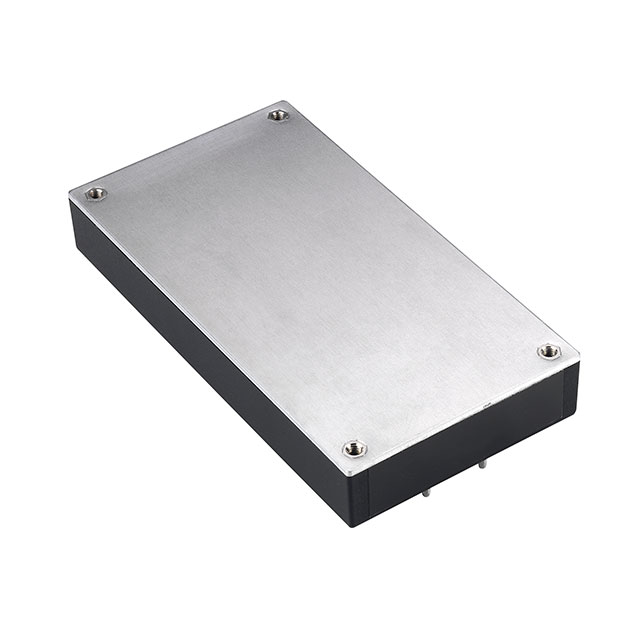

CBM100S480
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 48V 101W
Deep-Dive with AI
Search across all available documentation for this part.
CBM100S480
ObsoleteCincon Electronics Co. LTD
AC/DC CONVERTER 48V 101W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CBM100S480 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus, FCC, TUV |
| Current - Output (Max) [Max] | 2.1 A |
| Efficiency | 90.5 % |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Package / Case | Module |
| Power (Watts) | 101 W |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 17 mm |
| Size / Dimension [z] | 0.67 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 170.00 | |
| 5 | $ 166.60 | |||
| 10 | $ 161.60 | |||
| 25 | $ 155.14 | |||
Description
General part information
CBM100 Series
Enclosed AC DC Converters 1 Output 48V 2.1A 90 ~ 264 VAC Input
