60-12-4511-1671

Active

Parker Chomerics

THERM PAD 40.46X27.94MM W/ADH

Search across all available documentation for this part.

Active

Parker Chomerics

THERM PAD 40.46X27.94MM W/ADH

Technical Specifications

Parameters and characteristics for this part

Part	Outline [y]	Outline [x]	Shape	Adhesive	Material	Usage	Type	Backing, Carrier	Thermal Conductivity	Color	Thickness [custom]	Thickness [custom]	Shelf Life Start	Shelf Life	Thickness	Thickness
Parker Chomerics 60-12-4511-T500	27.94 mm	40.46 mm	Rhombus	Adhesive - One Side	Acrylic	TO-3	Insulator Pad Sheet	Fiberglass	2.1 W/m-K	Green	0.254 mm	0.01 in	Date of Shipment	18 Months
Parker Chomerics 60-12-4511-T441-08	27.94 mm	40.46 mm	Rhombus	Adhesive - One Side		TO-3	Insulator Pad Sheet	Fiberglass	1.1 W/m-K	Pink			Date of Shipment	12 Months	0.008 in	0.203 mm
Parker Chomerics 60-12-4511-1671	27.94 mm	40.46 mm	Rhombus	Adhesive - One Side	Acrylic	TO-3	Insulator Pad Sheet	Fiberglass	2.6 W/m-K	White			Date of Shipment	18 Months	0.015 in	0.381 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.27

General part information

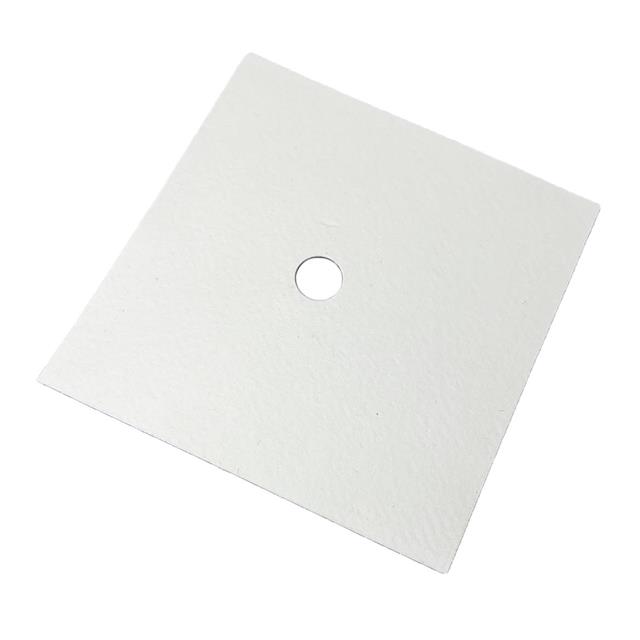

Thermal Pad White 40.46mm x 27.94mm Rhombus Adhesive - One Side

Technical documentation and resources
