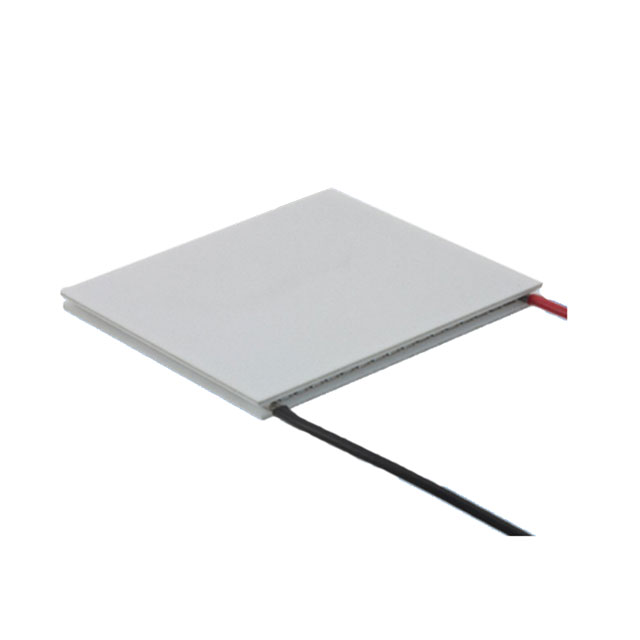

TEC-30-32-127

Active

Wakefield-Vette

PELTIER TEC 30X30X3.2MM 3.9A

Search across all available documentation for this part.

Active

Wakefield-Vette

PELTIER TEC 30X30X3.2MM 3.9A

Technical Specifications

Parameters and characteristics for this part

Specification	TEC-30-32-127

Current - Max [Max]	3.9 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	3.2 mm
Number of Stages	1
Operating Temperature	194 °F
Qmax @ Th	33.4 W
Resistance	3.37 Ohms
Size / Dimension [x]	30 mm
Size / Dimension [y]	30 mm
Voltage - Max [Max]	15.4 V

Part	Features	Size / Dimension [x]	Size / Dimension [y]	Number of Stages	Delta Tmax @ Th	Voltage - Max [Max]	Qmax @ Th	Resistance	Current - Max [Max]	Height [z]	Operating Temperature
Wakefield-Vette TEC-30-36-127	Lead Wires Sealed - Silicone RTV	30 mm	30 mm	1	67 °C	15.4 V	25.7 W	4.16 Ohms	3 A	3.6 mm	194 °F
Wakefield-Vette TEC-30-33-71	Lead Wires Sealed - Silicone RTV	30 mm	30 mm	1	67 °C	8.6 V	38.5 W	860 mOhms	8.5 A	3.3 mm	194 °F
Wakefield-Vette TEC-30-39-71	Lead Wires Sealed - Silicone RTV	30 mm	30 mm	1	68 °C	8.6 V	18.7 W	4.13 Ohms	3.9 A	3.91 mm	194 °F
Wakefield-Vette TEC-30-36-71	Lead Wires Sealed - Silicone RTV	30 mm	30 mm	1	68 °C	8.6 V	28.7 W		6 A	3.6 mm	194 °F
Wakefield-Vette TEC-30-32-127	Lead Wires Sealed - Silicone RTV	30 mm	30 mm	1	67 °C	15.4 V	33.4 W	3.37 Ohms	3.9 A	3.2 mm	194 °F

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 33.4W @ 25°C 3.9 A 90°C
