0192740006

Active

Molex

CONN QC RCPT 14-16AWG 0.250

Search across all available documentation for this part.

Active

Molex

CONN QC RCPT 14-16AWG 0.250

Technical Specifications

Parameters and characteristics for this part

Specification	0192740006

Color	Blue
Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Mating End Insulated
Insulation Diameter [diameter]	3.56 mm
Insulation Diameter [diameter]	0.14 in
Length - Overall [x]	22.1 mm
Length - Overall [x]	0.87 in
Mounting Type	Free Hanging (In-Line)
Tab Length	7.87 mm
Tab Length	0.31 in
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp

Part	Wire Gauge [Max]	Wire Gauge [Min]	Tab Width	Tab Width	Contact Finish	Contact Material	Tab Thickness	Tab Thickness	Color	Termination	Insulation	Tab Length	Tab Length	Mounting Type	Length - Overall [x]	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Terminal Type	Gender	Tab Length
Molex 0192740002	22 AWG	17.5 AWG	6.35 mm	0.25 in	Tin	Brass	0.032 in	0.81 mm	Red	Crimp	Non-Mating End Insulated	0.311 in	7.9 mm	Free Hanging (In-Line)	22.1 mm	0.87 in	3.3 mm	0.13 in	Standard	Female
Molex 0192740006			6.35 mm	0.25 in	Tin	Brass	0.032 in	0.81 mm	Blue	Crimp	Non-Mating End Insulated		0.31 in	Free Hanging (In-Line)	22.1 mm	0.87 in	3.56 mm	0.14 in	Standard	Female	7.87 mm
Molex 0192740003	22 AWG	17.5 AWG	6.35 mm	0.25 in	Tin	Brass	0.032 in	0.81 mm	Red	Crimp	Non-Mating End Insulated		0.31 in	Free Hanging (In-Line)	22.1 mm	0.87 in	3.3 mm	0.13 in	Standard	Female	7.87 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7500	$ 0.18

General part information

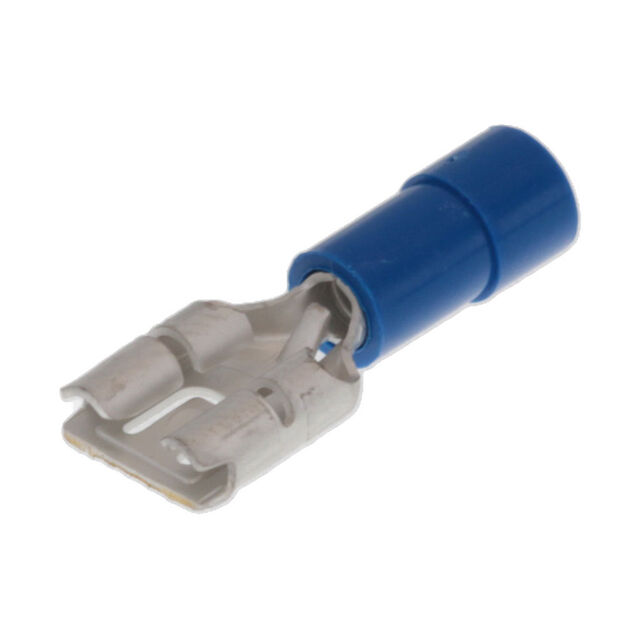

0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Non-Mating End Insulated
