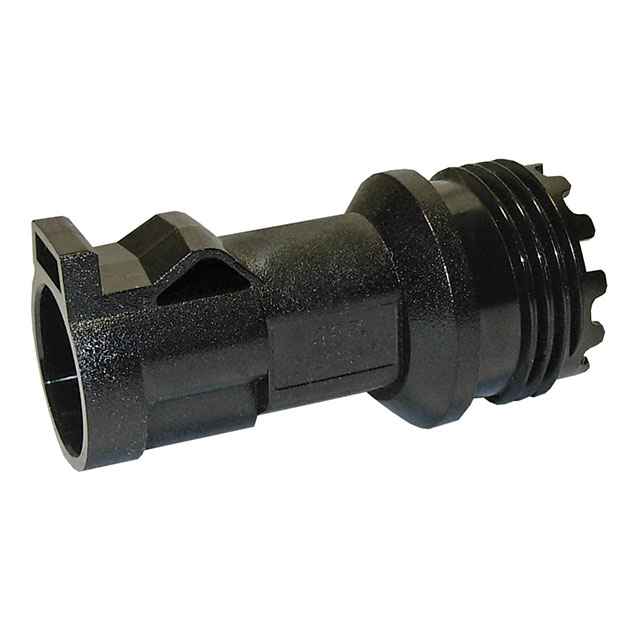

SK1-019M03

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 3POS INLINE

Search across all available documentation for this part.

Active

Anderson Power Products, Inc.

CONN RCPT HSG MALE 3POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	SK1-019M03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Latch Holder
Features	Backshell
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Orientation	Keyed
Shell Material	Polycarbonate (PC)
Shell Size - Insert	19-3
Shielding	Unshielded
Type	For Male Pins

Part	Shielding	Type	Shell Size - Insert	Insert Material	Fastening Type	Number of Positions	Shell Material	Mounting Type	Ingress Protection	Housing Color	Features	Note	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Contact Type	Orientation
Anderson Power Products, Inc. SK1-019M03	Unshielded	For Male Pins	19-3	Polycarbonate (PC)	Latch Holder	3	Polycarbonate (PC)	Free Hanging (In-Line)	IP68 - Dust Tight Waterproof	Black	Backshell	Contacts Not Included	UL94 V-0	-20 C	105 ░C	Receptacle Housing	Circular	Crimp	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 (Power) Position Circular Connector Receptacle Housing Free Hanging (In-Line) Backshell
