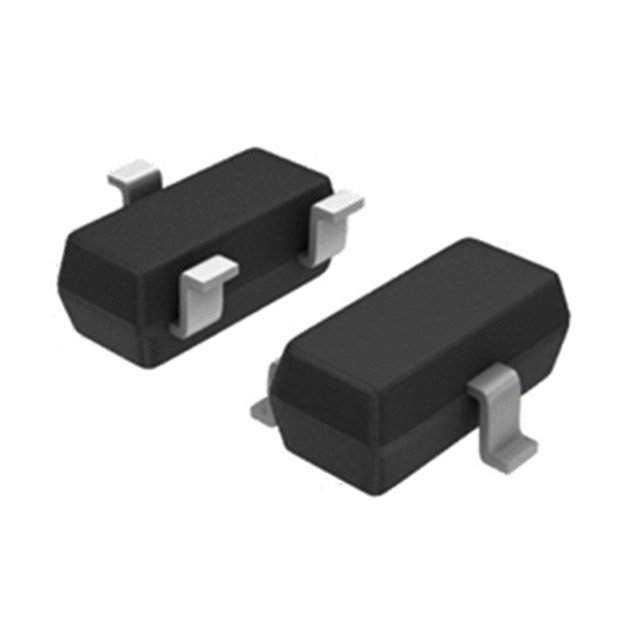

TS6001AIG325
ObsoleteSilicon Labs
IC VREF SERIES 0.08% SOT23-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TS6001AIG325
ObsoleteSilicon Labs
IC VREF SERIES 0.08% SOT23-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TS6001AIG325 |
|---|---|
| Current - Output | 500 µA |
| Current - Supply | 35 µA |
| Mounting Type | Surface Mount |
| Noise - 0.1Hz to 10Hz | 50 µVp-p |
| Noise - 10Hz to 10kHz | 75 µVrmp |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 1.81 mOhm |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Reference Type | Series |
| Supplier Device Package | SOT-23-3 |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.08 % |
| Voltage - Input [Max] | 12.6 V |
| Voltage - Input [Min] | 2.7 V |
| Voltage - Output (Min/Fixed) | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TS6001 Series
Series Voltage Reference IC Fixed 2.5V V ±0.08% 500 µA SOT-23-3
