R142334700
ActiveRadiall USA, Inc.

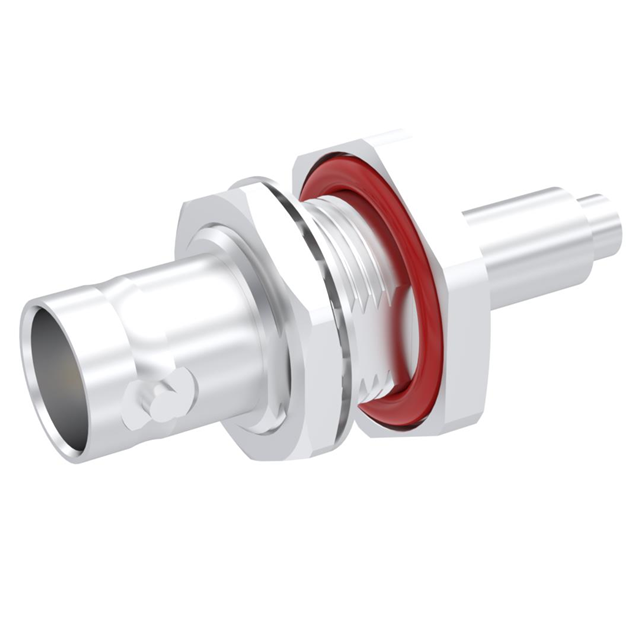

RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK
Deep-Dive with AI
Search across all available documentation for this part.
R142334700
ActiveRadiall USA, Inc.
RF BNC CONNECTOR, FEMALE, PANEL MOUNT, CABLE MOUNT, CRIMP TERMINAL, JACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | R142334700 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RG-59, Belden 1505A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Crimp |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 1000 |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 14.77 | |
Description
General part information
R14233 Series
BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
