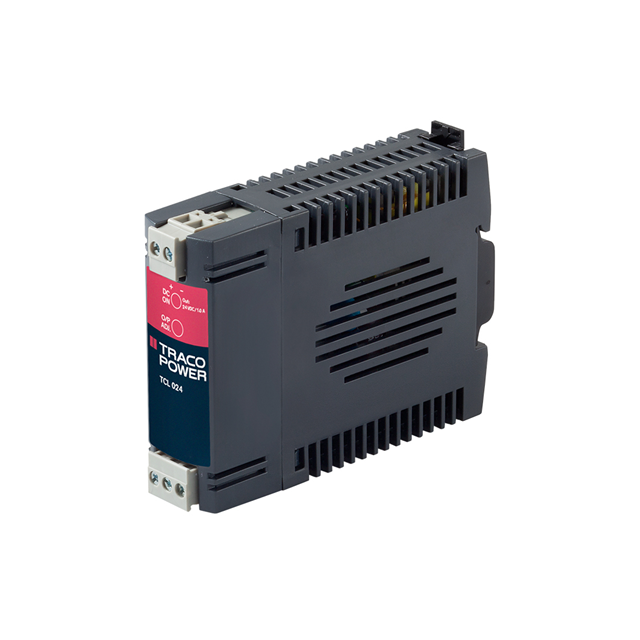

TCL 024-124 DC
ActiveTraco Power
DC/DC DIN RAIL SUPPLY 24V 24W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TCL 024-124 DC |
|---|---|
| Applications | Industrial, ITE (Commercial) |
| Approval Agency | CB, cULus |
| Current - Output (Max) [Max] | 1 A |
| DC Voltage - Input (Max) [Max] | 75 V |
| DC Voltage - Input (Min) [Min] | 18 V |
| Efficiency | 86 % |
| Features | Adjustable Output, IP20 |
| Input Type | DC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 24 W |
| Size / Dimension [x] | 100.1 mm, 3.94 " |
| Size / Dimension [y] | 26.9 mm, 1.06 " |
| Size / Dimension [z] | 2.95 ", 74.9 mm |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 101.10 | |
| 10 | $ 88.86 | |||
| 25 | $ 84.41 | |||
| 50 | $ 81.19 | |||
| 100 | $ 78.10 | |||
| 250 | $ 71.83 | |||
Description
General part information
TCL 024 Series
DC/DC DIN RAIL SUPPLY 24V 24W
