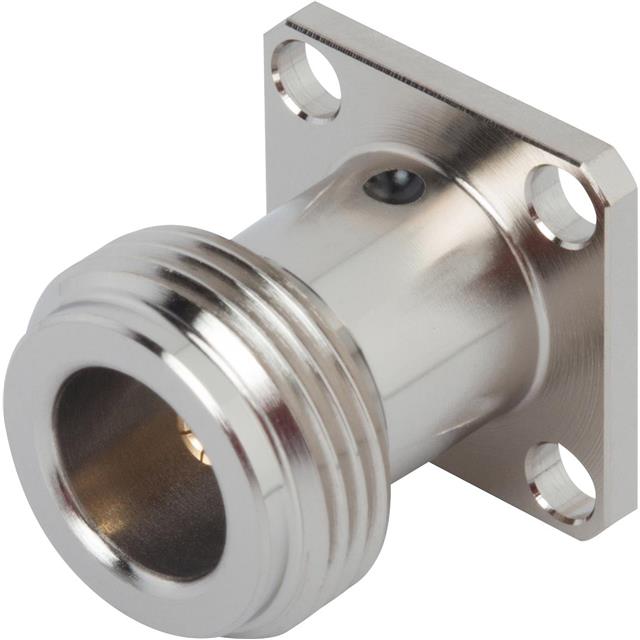

5050-0042

Active

Amphenol SV Microwave

CONN N JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Amphenol SV Microwave

CONN N JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	5050-0042

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Tab
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder

Part	Housing Color	Center Contact Material	Contact Termination	Mounting Feature	Body Material	Dielectric Material	Connector Type	Connector Style	Mating Cycles	Center Contact Plating	Frequency - Max [Max]	Body Finish	Shield Termination	Number of Ports	Impedance
Amphenol SV Microwave 5050-0042	Silver	Beryllium Copper	Solder Tab	Flange	Brass	Polytetrafluoroethylene (PTFE)	Female Socket Jack	N Type	500	Gold	12.4 GHz	Nickel	Solder	1	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 32.97

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Tab
