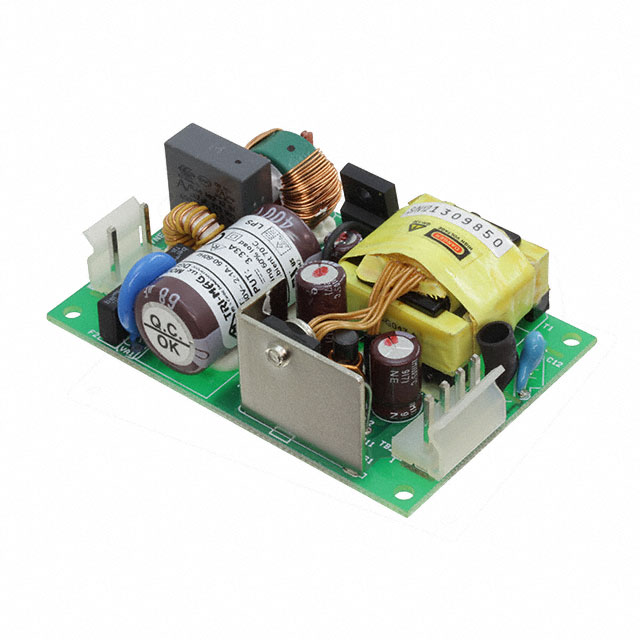

DG040-7

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 40W

Search across all available documentation for this part.

Active

Tri-Mag, LLC

AC/DC CONVERTER 12V 40W

Technical Specifications

Parameters and characteristics for this part

Part	Approval Agency	Mounting Type	Current - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Power (Watts)	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Voltage - Isolation	Applications	Type	Features
Tri-Mag, LLC DG040M-G	CB CE	Chassis Mount	1.42 A	90 VAC	264 VAC	28 V	40 W	-20 °C	70 °C	86 %	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	1	4000 V	Medical	Open Frame	PFC Universal Input
Tri-Mag, LLC DG040M-14	CB CE	Chassis Mount	830 mA	90 VAC	264 VAC	48 V	40 W	-20 °C	70 °C	86 %	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	1	4000 V	Medical	Open Frame	PFC Universal Input
Tri-Mag, LLC DG040M-8	CB CE	Chassis Mount	2.66 A	90 VAC	264 VAC	15 V	40 W	-20 °C	70 °C	86 %	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	1	4000 V	Medical	Open Frame	PFC Universal Input
Tri-Mag, LLC DG040-7	CB CE	Chassis Mount	3.33 A	90 VAC	264 VAC	12 V	40 W	-20 °C	70 °C	86 %	0.91 in	23.1 mm	3 "	2 in	76.2 mm	50.8 mm	1	4000 V	ITE (Commercial)	Open Frame	PFC Universal Input

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
