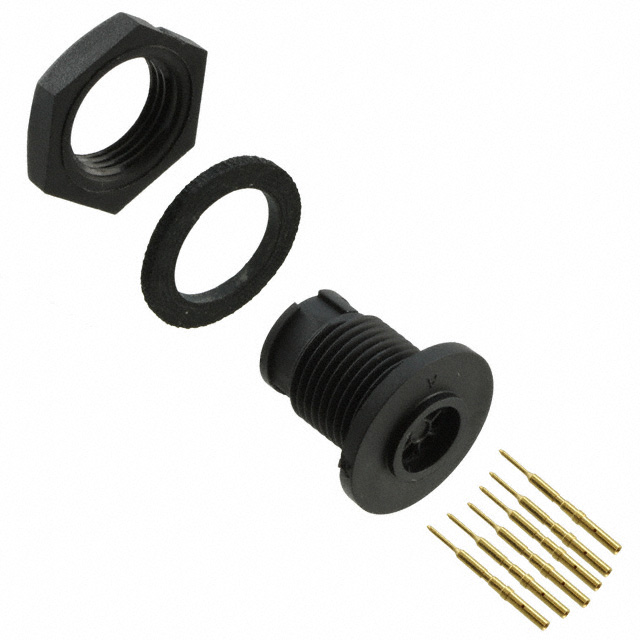

17980-6PG-300

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17980-6PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

Part	Contact Material	Fastening Type	Ingress Protection	Color	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Material Flammability Rating	Shielding	Number of Positions	Applications	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature	Connector Type	Voltage Rating	Orientation
Conxall/Switchcraft 17980-6PG-300	Copper Alloy	Bayonet Lock	IP67 - Dust Tight Waterproof	Black	Gold	Plastic	4 A	UL94 HB	Unshielded	6	Data Industrial Instrumentation Medical	Crimp	85 °C	-40 °C	Bulkhead - Front Side Nut	Male Pins Receptacle	600 VAC	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Crimp
