H3DDH-5036M

Active

Assmann WSW Components

IDC CBL - HKR50H/AE50M/HKR50H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HKR50H/AE50M/HKR50H

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDH-5036M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Socket
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Number of Positions	Connector Type	Length	Length	Length	Cable Termination	Shielding	Features	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Connector	Pitch - Connector	Color	Pitch - Cable	Pitch - Cable	Length [x]	Length [x]
Assmann WSW Components H3DDH-5006M	50	Socket to Socket	152.4 mm	6 "	0.5 '	IDC	Unshielded	Polarizing Key Strain Relief	2	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Multiple Ribbon	0.05 "	1.27 mm
Assmann WSW Components H3DDH-5036M	50	Socket to Socket				IDC	Unshielded	Polarizing Key Strain Relief	2	15 µin	0.38 µm	Gold	0.1 in	2.54 mm	Multiple Ribbon	0.05 "	1.27 mm	3 ft	914.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

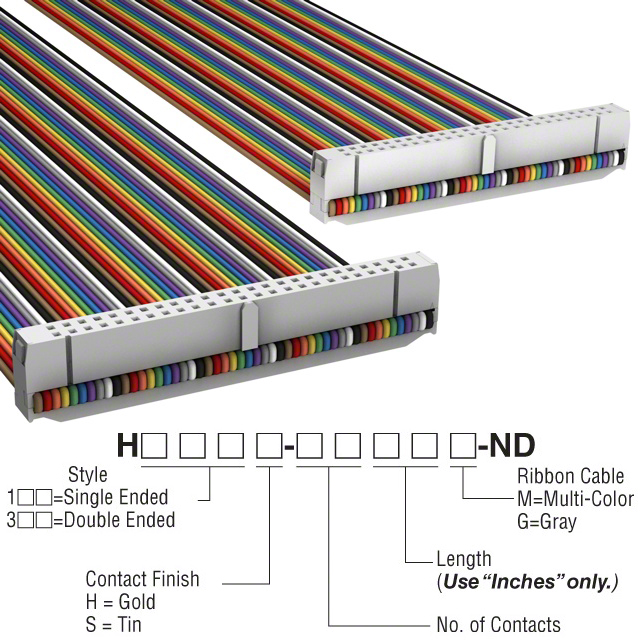

50 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
