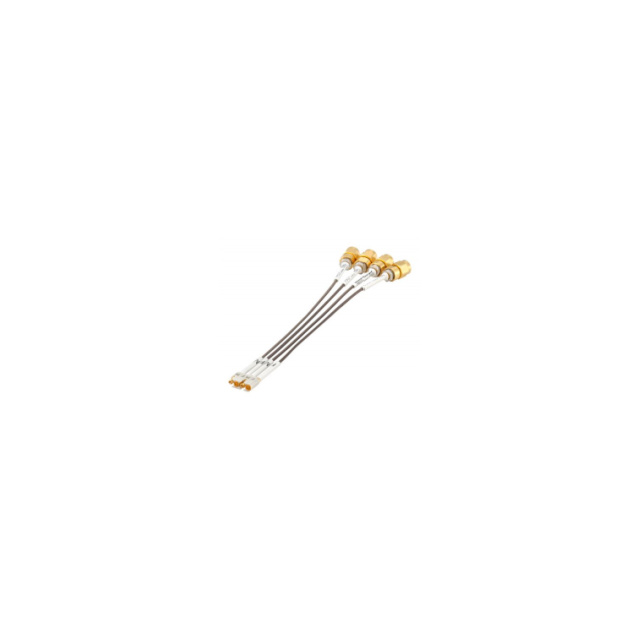

L99-799-30E

Active

Rosenberger

CBL ASY MIN COAX-SMA J-P 11.811"

Search across all available documentation for this part.

Active

Rosenberger

CBL ASY MIN COAX-SMA J-P 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	L99-799-30E

1st Connector	Mini Coaxial Plug (2), Mini Coaxial Jack (2)
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male, Female
2nd Connector	SMA Plug (4)
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RTK 047
Frequency - Max [Max]	20 GHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	Mini Coaxial to SMA

Part	2nd Connector Mounting Type	Length [x]	Length [x]	1st Connector	1st Connector Mounting Type	2nd Connector	Cable Type	Frequency - Max [Max]	Overall Impedance	Operating Temperature [Min]	Operating Temperature [Max]	2nd Contact Gender	1st Contact Gender	Style
Rosenberger L99-799-30G	Free Hanging (In-Line)	300 mm	11.811 in	Mini Coaxial Jack (3) Mini Coaxial Plug (3)	Free Hanging (In-Line)	SMA Plug (6)	RTK 047	20 GHz	50 Ohms	-40 °C	115 °C	Male	Female Male	Mini Coaxial to SMA
Rosenberger L99-799-30E	Free Hanging (In-Line)	300 mm	11.811 in	Mini Coaxial Jack (2) Mini Coaxial Plug (2)	Free Hanging (In-Line)	SMA Plug (4)	RTK 047	20 GHz	50 Ohms	-40 °C	115 °C	Male	Female Male	Mini Coaxial to SMA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Cable Assembly Coaxial Mini Coaxial to SMA RTK 047 11.811" (300.00mm)

Technical documentation and resources

No documents available
