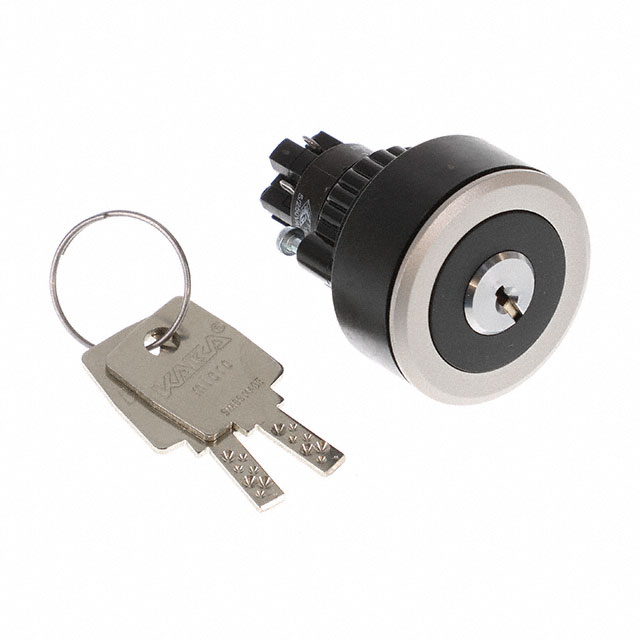

K14-141.22100

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLOCK 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	K14-141.22100

Actuator Type	Flat Key
Angle of Throw	42 °
Circuit	DPST-NO/NC
Contact Finish	Gold
Contact Material	Silver (Ag)
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Depth Behind Flange	46.5 mm
Features	IP65
Key Removable Positions	1 only
Mechanical Life	2000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.5 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	250 V

Part	Features	Key Removable Positions	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Voltage Rating - AC	Contact Timing	Angle of Throw	Number of Positions	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Mechanical Life	Circuit
EAO K14-141.22100	IP65	1 only	Flat Key	Solder Lug	30.5 mm	46.5 mm	250 V	Not Specified	42 °	2	5 A	Off-Mom	55 °C	-25 °C	Gold	Silver (Ag)	2000000 Cycles	DPST-NO/NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.23

General part information

Keylock Switch 2 Position DPST-NO/NC 5A (AC) 250 VAC DC Panel Mount
