Q2-F-3/16-01-SS500FT

Active

Qualtek

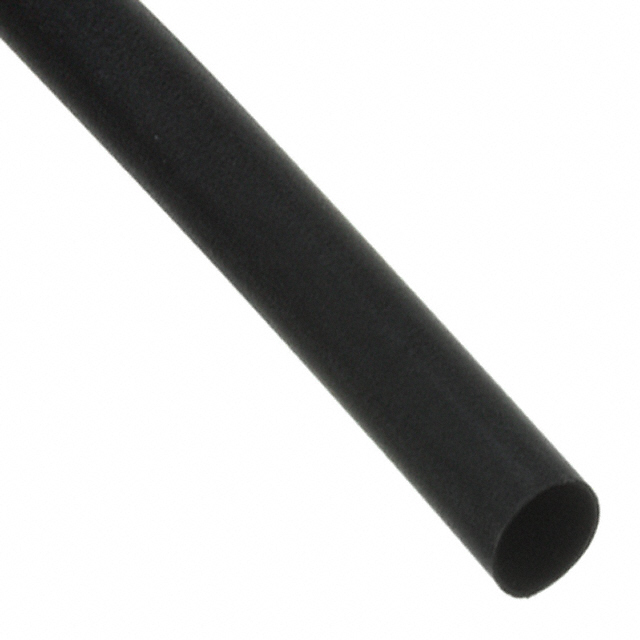

HEATSHRK BLK 3/16X1" 50=50PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRK BLK 3/16X1" 50=50PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-3/16-01-SS500FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	2.41 mm
Inner Diameter - Recovered [diameter]	0.095 in
Inner Diameter - Supplied [diameter]	4.75 mm
Inner Diameter - Supplied [diameter]	0.187 in
Length	Enter Number of Feet in Order Quantity
Length	50.8 mm, 152.4 mm, 76.2 mm, 25.4 mm
Length	2 ", 6 ", 3 ", 1 in
Length	0.167 ', 0.25 ft, 0.083 ft
Length	0.5 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.019 "
Recovered Wall Thickness	0.48 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	500 '
Spool Size	152.4 m
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Material	Shrinkage Ratio	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Shelf Life Start	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Shelf Life	Color	Features	Length	Length	Length	Spool Size	Spool Size	Length	Length
Qualtek Q2-F-3/16-01-MS100FT	-50 °F -10 °C	40 °C	70 °C	Polyolefin (PO)	2 to 1	30.5 m	100 ft	135 °C	-55 °C	Date of Manufacture	0.019 "	0.48 mm	2.41 mm	0.095 in	4.75 mm	0.187 in	Tubing Flexible	144 Months	Black	Flame Retardant
Qualtek Q2-F-3/16-01-QB6IN-24	-50 °F -10 °C	40 °C	70 °C	Polyolefin (PO)	2 to 1			135 °C	-55 °C		0.019 "	0.48 mm	2.41 mm	0.095 in	4.75 mm	0.187 in	Tubing Flexible	144 Months	Black	Flame Retardant	152.4 mm	6 "	0.5 '
Qualtek Q2-F-3/16-01-SS500FT	-50 °F -10 °C	40 °C	70 °C	Polyolefin (PO)	2 to 1			135 °C	-55 °C		0.019 "	0.48 mm	2.41 mm	0.095 in	4.75 mm	0.187 in	Tubing Flexible	144 Months	Black	Flame Retardant	25.4 mm 50.8 mm 76.2 mm 152.4 mm	1 in 2 " 3 " 6 "	0.5 '	500 '	152.4 m	Enter Number of Feet in Order Quantity	0.083 ft 0.167 ' 0.25 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.187" (4.75mm) 2 to 1 Black 0.083' (25.40mm, 1.00")
