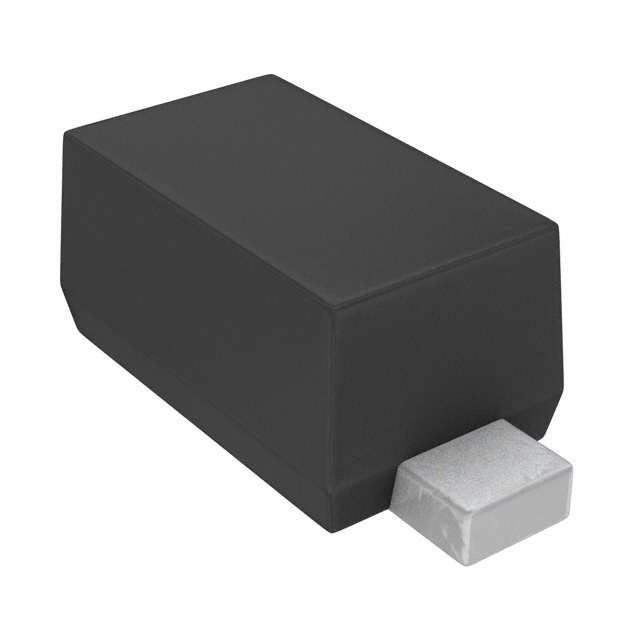

1SS400GT2R

Obsolete

Rohm Semiconductor

DIODE GEN PURP 80V 100MA VMD2

Search across all available documentation for this part.

Obsolete

Rohm Semiconductor

DIODE GEN PURP 80V 100MA VMD2

Technical Specifications

Parameters and characteristics for this part

Specification	1SS400GT2R

Capacitance @ Vr, F	3 pF
Current - Average Rectified (Io)	100 mA
Current - Reverse Leakage @ Vr	100 nA
Mounting Type	Surface Mount
Operating Temperature - Junction	150 °C
Package / Case	SOD-723
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	VMD2
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	80 V

High-speed switching, 80V, 100mA, Switching Diode for Automotive

Part	Package / Case	Mounting Type	Current - Average Rectified (Io)	Speed	Speed	Reverse Recovery Time (trr)	Technology	Operating Temperature - Junction	Grade	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Qualification	Supplier Device Package	Voltage - DC Reverse (Vr) (Max) [Max]
Rohm Semiconductor 1SS400SMFHT2R	SC-79 SOD-523	Surface Mount	100 mA	Any Speed	200 mA	4 ns	Standard	150 °C	Automotive	100 nA	3 pF	AEC-Q101	EMD2	80 V
Rohm Semiconductor 1SS400CSFHT2RA	2-SMD Flat Leads	Surface Mount	100 mA	Any Speed	200 mA	4 ns	Standard	150 °C	Automotive	100 nA	3 pF	AEC-Q101	VMN2 (SOD-923)	80 V
Rohm Semiconductor 1SS400SMT2R	SC-79 SOD-523	Surface Mount	100 mA	Any Speed	200 mA	4 ns	Standard	150 °C		100 nA	3 pF		EMD2	80 V
Rohm Semiconductor 1SS400CST2R	2-SMD Flat Leads	Surface Mount	100 mA	Any Speed	200 mA		Standard	150 °C		100 nA	3 pF		VMN2 (SOD-923)	80 V
Rohm Semiconductor 1SS400CST2RA	2-SMD Flat Leads	Surface Mount	100 mA	Any Speed	200 mA	4 ns	Standard	150 °C		100 nA	3 pF		VMN2 (SOD-923)	80 V
Rohm Semiconductor 1SS400GT2R	SOD-723	Surface Mount	100 mA	Any Speed	200 mA	4 ns	Standard	150 °C		100 nA	3 pF		VMD2	80 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

ROHM's switching diodes, including diode arrays, are available in high-reliability packages and stable supply for various applications.
