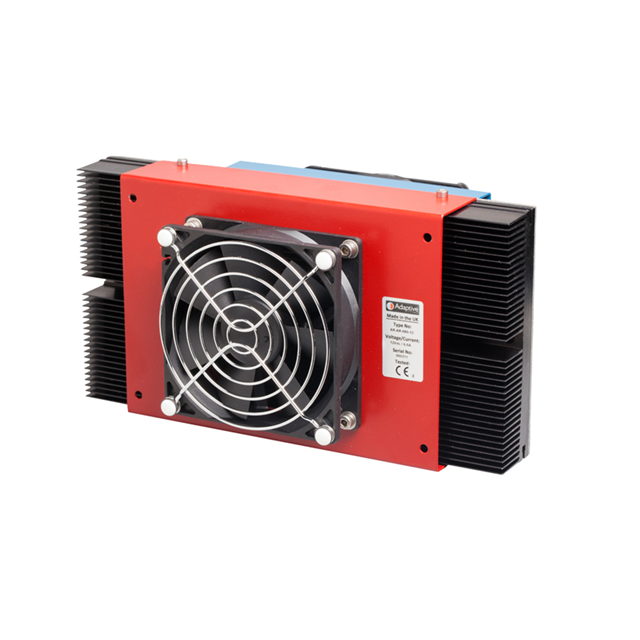

AR-AR-070-24
ActiveEuropean Thermodynamics Ltd
TE ASSY,AA,70W,24VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR-AR-070-24
ActiveEuropean Thermodynamics Ltd
TE ASSY,AA,70W,24VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR-AR-070-24 |
|---|---|
| Current | 4.8 A |
| Dimensions - Overall [x] | 230 mm |
| Dimensions - Overall [y] | 125.7 mm |
| Dimensions - Overall [z] | 138.6 mm |
| Fan Location | Cold Side / Warm Side |
| Heat Transfer Type | Air to Air |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Power - Input | 88.8 W |
| Voltage | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 476.04 | |
| 5 | $ 447.42 | |||
| 10 | $ 435.63 | |||
Description
General part information
AR-AR-070 Series
Air to Air Thermoelectric Assembly 57.2 W
