ES1200/03DSFB

Active

On Shore Technology Inc.

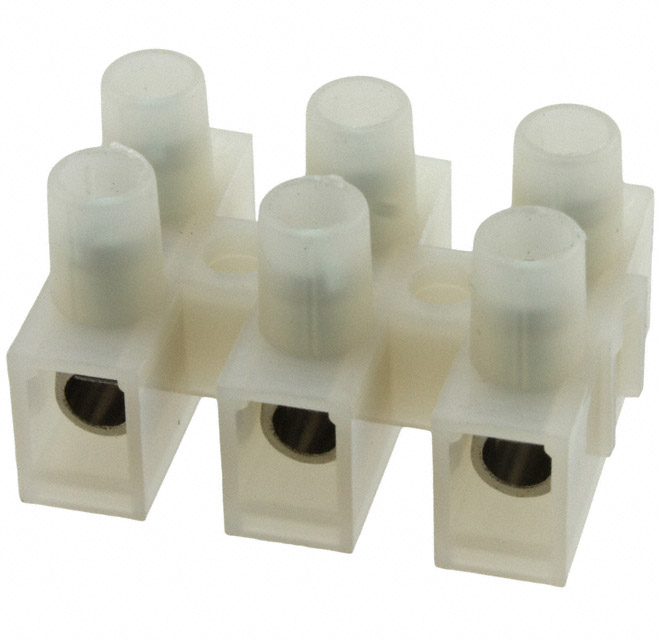

CONN TERM STRIP 3CIRC 0.472"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ES1200/03DSFB

Active

On Shore Technology Inc.

CONN TERM STRIP 3CIRC 0.472"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ES1200/03DSFB

Barrier Type	Enclosed
Bottom Termination	Closed
Color	Natural
Current Rating (Amps)	30 A
Material - Insulation	Polyamide (PA66), Nylon 6/6
Mounting Type	Panel, Chassis
Number of Circuits	3
Number of Rows	2
Number of Wire Entries	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-33 °C
Pitch [x]	12 mm
Pitch [x]	0.472 in
Terminal Block Type	Eurostyle Terminal Strip
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	20 AWG
Wire Gauge [Min]	10 AWG

ES1200 Series

Part	Barrier Type	Current Rating (Amps)	Number of Circuits	Terminal Block Type	Pitch [x]	Pitch [x]	Number of Rows	Terminal Screw Finish	Voltage Rating	Color	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Top Termination	Bottom Termination	Terminal Screw Material	Number of Wire Entries [custom]	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Number of Circuits [custom]
On Shore Technology Inc. ES1200/11DSFB	Enclosed	30 A	11	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel	22	Chassis Panel	20 AWG	10 AWG
On Shore Technology Inc. ES1200/07DSFB	Enclosed	30 A	7	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	14
On Shore Technology Inc. ES1200/05DSFB	Enclosed	30 A	5	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	10
On Shore Technology Inc. ES1200/12DSFB	Enclosed	30 A	12	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG
On Shore Technology Inc. ES1200/10DSFB	Enclosed	30 A	10	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	20
On Shore Technology Inc. ES1200/06DSFB	Enclosed	30 A	6	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	12
On Shore Technology Inc. ES1200/03DSFB	Enclosed	30 A	3	Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	6
On Shore Technology Inc. ES1200/08DSFB	Enclosed	30 A		Eurostyle Terminal Strip	12 mm	0.472 in	2	Zinc	300 VDC	Natural	105 ░C	-33 °C	Polyamide (PA66) Nylon 6/6	Screws	Closed	Steel		Chassis Panel	20 AWG	10 AWG	16	8

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.64
		10	$ 1.15
		100	$ 0.97
		1000	$ 0.69
		5000	$ 0.56
		10000	$ 0.55

Description

General part information

ES1200 Series

3 Circuit 0.472" (12.00mm) Eurostyle Terminal Strip Connector Screws
