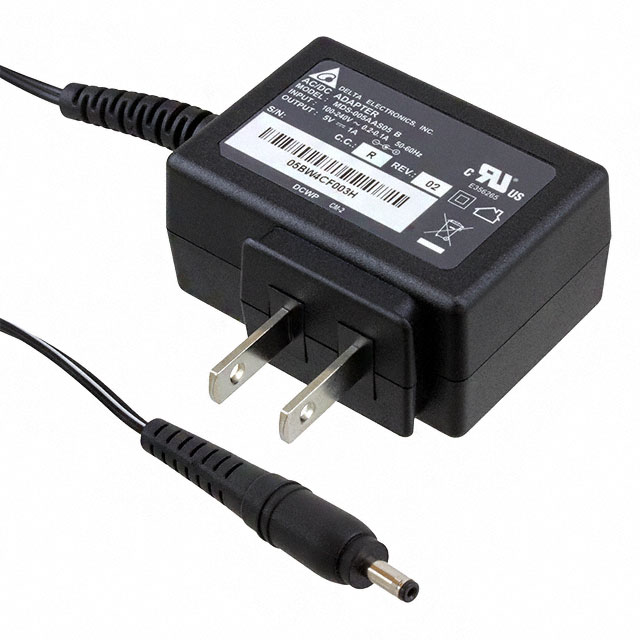

MDS-005AAS05 BR
ActiveDelta Electronics
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
MDS-005AAS05 BR
ActiveDelta Electronics
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDS-005AAS05 BR |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CE, CB Scheme, EN, UL |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption | 300 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 3.5 mm, 1.35 mm |
| Output Connector [z] | 9.5 mm |
| Power (Watts) | 5 W |
| Region Utilized | North America |
| Size / Dimension [x] | 2.22 in |
| Size / Dimension [x] | 56.4 mm |
| Size / Dimension [y] | 28 mm |
| Size / Dimension [y] | 1.1 in |
| Size / Dimension [z] | 39.5 mm |
| Size / Dimension [z] | 1.55 in |
| Standard Number | 55011, 50581, 55032, 60950-1, 60601-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 100.24 g |
| Weight | 0.221 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.03 | |
| 5 | $ 7.81 | |||
| 10 | $ 7.64 | |||
Description
General part information
MDS-005 Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
