NXN1.00GN25

Active

Techflex

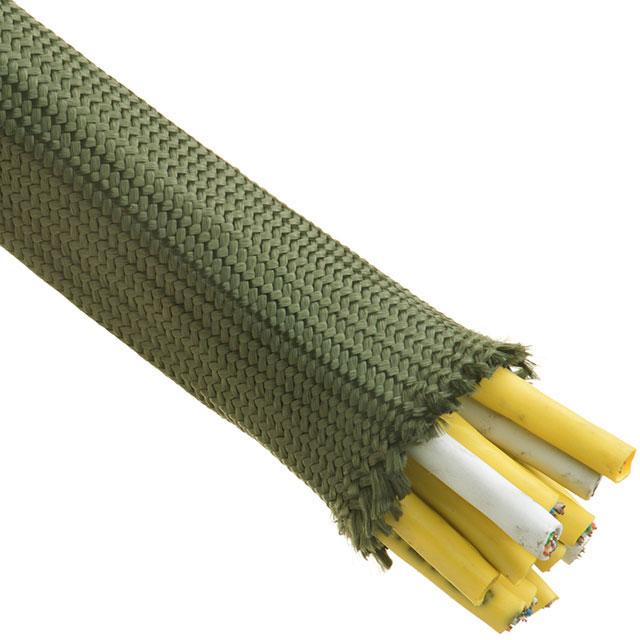

EXPAND SLEEVING 1" X 25' GREEN

Search across all available documentation for this part.

Active

Techflex

EXPAND SLEEVING 1" X 25' GREEN

Technical Specifications

Parameters and characteristics for this part

Specification	NXN1.00GN25

Abrasion Protection	Abrasion and Cut Resistant
Color	Green
Diameter - Inside, Expanded [diameter]	28.58 mm
Diameter - Inside, Expanded [diameter]	1.125 in
Diameter - Inside, Non-Expanded [diameter]	1 in
Diameter - Inside, Non-Expanded [diameter]	25.4 mm
Features	Chemical Resistant, Self Extinguishing, Acid Resistant, Clean Cut, Solvent Resistant
Heat Protection	Flame Resistant, Heat Resistant
Length [x]	25 ft
Length [x]	7.62 m
Liquid Protection	Gasoline Resistant
Material	Polyaramid Polymetaphenylene Isophthalamide, Halogen Free
Operating Temperature [custom]	220 °C, -60 °C
Type	Sleeve
Type Attributes	Expandable
Wall Thickness	0.016 in
Wall Thickness	0.4 mm

Part	Type Attributes	Abrasion Protection	Type	Material	Wall Thickness	Wall Thickness	Operating Temperature [custom]	Liquid Protection	Features	Color	Heat Protection	Length [x]	Length [x]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]
Techflex NXN1.00GN25	Expandable	Abrasion and Cut Resistant	Sleeve	Polyaramid Polymetaphenylene Isophthalamide Halogen Free	0.016 in	0.4 mm	-60 °C 220 °C	Gasoline Resistant	Acid Resistant Chemical Resistant Clean Cut Self Extinguishing Solvent Resistant	Green	Flame Resistant Heat Resistant	25 ft	7.62 m	28.58 mm	1.125 in	1 in	25.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 190.26

General part information

Sleeve X 25.00' (7.62m) Green
