C0899A.41.10

Active

Prysmian Group

MULTI-PAIR 12CON 24AWG GRY 1000'

Search across all available documentation for this part.

Active

Prysmian Group

MULTI-PAIR 12CON 24AWG GRY 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	C0899A.41.10

Cable Type	Multi-Pair
Conductor Insulation	Polyethylene (PE)
Conductor Material	Copper, Annealed Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.336 "
Jacket (Insulation) Diameter [diameter]	8.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Number of Conductors	12
Ratings	ASTM B-33
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	30 V
Wire Gauge	24 AWG

Part	Shield Type	Usage	Voltage	Jacket Color	Shield Material	Cable Type	Ratings	Shield Coverage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Features	Conductor Insulation
Prysmian Group C0899A.41.10	Foil	Computer	30 V	Gray	Aluminum	Multi-Pair	ASTM B-33	100 %	1000 ft	304.8 m	32 AWG	7	Copper Annealed Tinned	0.336 "	8.53 mm	24 AWG	Poly-Vinyl Chloride (PVC)	12	Drain Wire	Polyethylene (PE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

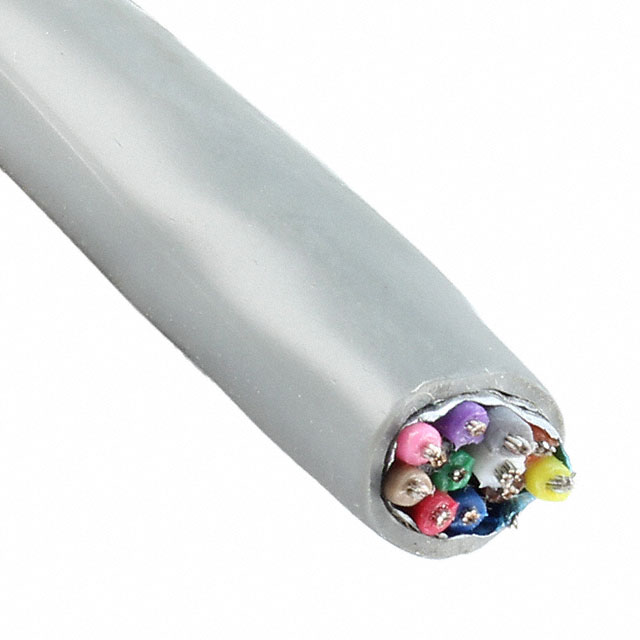

12 (6 Pair Twisted) Conductor Multi-Pair Cable Gray 24 AWG Foil 1000.0' (304.8m)
