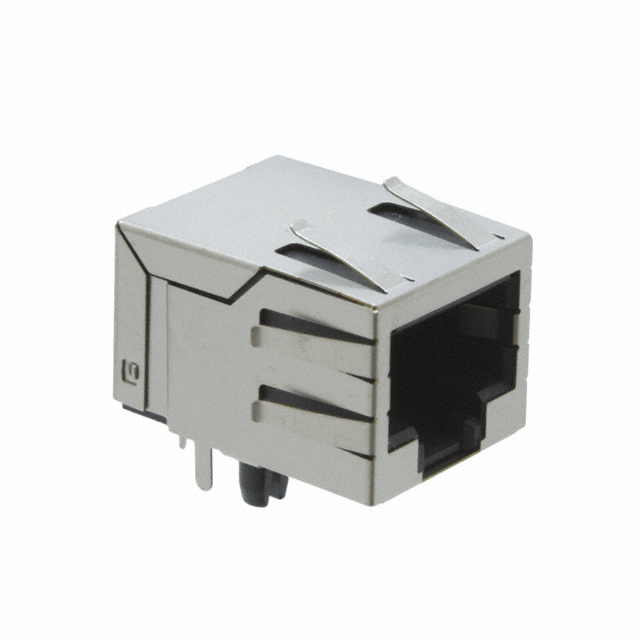

A60-112-300P432

Obsolete

EDAC Inc.

CONN JACK 1PORT PCB

Search across all available documentation for this part.

Obsolete

EDAC Inc.

CONN JACK 1PORT PCB

Technical Specifications

Parameters and characteristics for this part

Specification	A60-112-300P432

Applications	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Height Above Board	0.535 in
Height Above Board	13.59 mm
Housing Material	Polyester, Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Cores per Jack	8
Number of Ports	1
Number of Rows	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Copper Alloy
Shielding	Shielded, EMI Finger
Tab Direction	Down
Termination	Solder

Part	Shielding	LED Color	Applications	Contact Finish Thickness	Orientation	Termination	Connector Type	Height Above Board	Height Above Board	Housing Material	Tab Direction	Shield Material	Operating Temperature [Max]	Number of Rows	Contact Material	Contact Finish	Mounting Type	Number of Ports	Number of Cores per Jack
EDAC Inc. A60-112-300P492	Shielded EMI Finger	Does Not Contain LED	10/100/1000 Base-T AutoMDIX	Flash	90 °	Solder	RJ45	0.535 in	13.59 mm	Polybutylene Terephthalate (PBT) Glass Filled	Down	Copper Alloy	70 °C	1	Phosphor Bronze	Gold	Through Hole	1	8
EDAC Inc. A60-112-331P411	Shielded EMI Finger	Green Yellow	10/100/1000 Base-T AutoMDIX	Flash	90 °	Solder	RJ45	0.535 in	13.59 mm	Polybutylene Terephthalate (PBT) Glass Filled	Down	Copper Alloy	70 °C	1	Phosphor Bronze	Gold	Through Hole	1	8
EDAC Inc. A60-112-300P432	Shielded EMI Finger	Does Not Contain LED	10/100/1000 Base-T AutoMDIX	Flash	90 °	Solder	RJ45	0.535 in	13.59 mm	Polybutylene Terephthalate (PBT) Polyester	Down	Copper Alloy	70 °C	1	Phosphor Bronze	Gold	Through Hole	1	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
