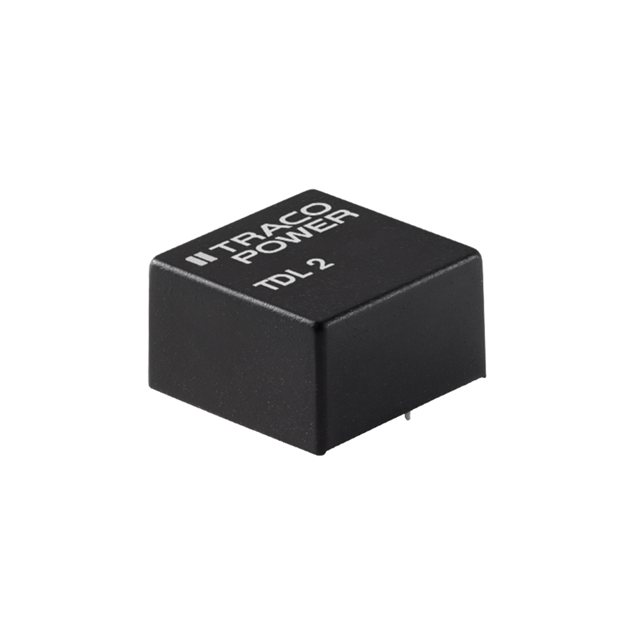

TDL 2-2413

Traco Power

DC DC CONVERTER 15V 2W

Search across all available documentation for this part.

Traco Power

DC DC CONVERTER 15V 2W

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Input (Max) [Max]	Voltage - Isolation	Package / Case	Package / Case	Current - Output (Max) [Max]	Applications	Voltage - Input (Min) [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Efficiency	Features	Type	Mounting Type	Voltage - Output 1	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TDL 2-2412	36 V	1.5 kV	7-DIP Module	4 Lead	167 mA	ITE (Commercial)	18 V	0.55 in	14 mm	0.31 in	8 mm	0.55 in	14 mm	-40 °C	70 °C	1	2 W	86 %	SCP	Isolated Module	Through Hole	12 V
Traco Power TDL 2-4812	75 V	1.5 kV	7-DIP Module	4 Lead	167 mA	ITE (Commercial)	36 V	0.55 in	14 mm	0.31 in	8 mm	0.55 in	14 mm	-40 °C	70 °C	1	2 W	85 %	SCP	Isolated Module	Through Hole	12 V
Traco Power TDL 2-0513	10 V	1.5 kV	7-DIP Module	4 Lead	134 mA	ITE (Commercial)	4.5 V	0.55 in	14 mm	0.31 in	8 mm	0.55 in	14 mm	-40 °C	70 °C	1	2 W	87 %	SCP	Isolated Module	Through Hole	15 V
Traco Power TDL 2-0523	10 V	1.5 kV	7-DIP Module 5 Leads			ITE (Commercial)	4.5 V	0.55 in	14 mm	0.31 in	8 mm	0.55 in	14 mm	-40 °C	70 °C	2	2 W	85 %	SCP	Isolated Module	Through Hole	15 V	-15 V	67 mA	67 mA
Traco Power TDL 2-2413	36 V	1.5 kV	7-DIP Module	4 Lead	134 mA	ITE (Commercial)	18 V	0.55 in	14 mm	0.31 in	8 mm	0.55 in	14 mm	-40 °C	70 °C	1	2 W	87 %	SCP	Isolated Module	Through Hole	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 18.19
