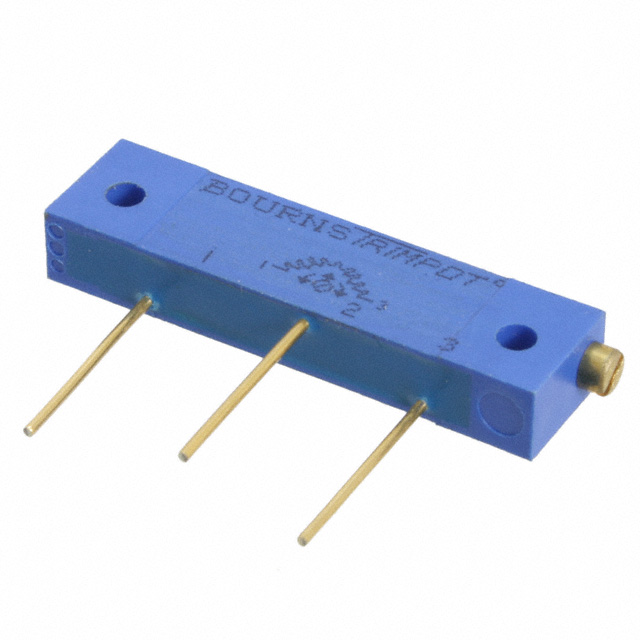

3057Y-1-500

Active

Bourns Inc.

TRIMMER 50 OHM 1W PC PIN SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 50 OHM 1W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Size / Dimension [x]	Size / Dimension [y]	Termination Style	Adjustment Type	Resistive Material	Resistance	Tolerance	Power (Watts)	Temperature Coefficient	Mounting Type
Bourns Inc. 3057Y-1-503	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	50 kOhms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-200	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	20 Ohms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-102	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	1000 Ohms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-251	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	250 Ohms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-201M	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	200 Ohms	5 %	1 W	50 ppm/°C	Panel Mount Through Hole
Bourns Inc. 3057Y-1-253	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	25 kOhms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-500	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	50 Ohms	5 %	1 W	50 ppm/°C	Chassis Mount
Bourns Inc. 3057Y-1-101	22	0.315 " 8 mm	0.19 in 4.83 mm	PC Pins	Side Adjustment	Wirewound	100 Ohms	5 %	1 W	50 ppm/°C	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Ohms 1W PC Pins Chassis Mount Trimmer Potentiometer Wirewound 22.0 Turn Side Adjustment
