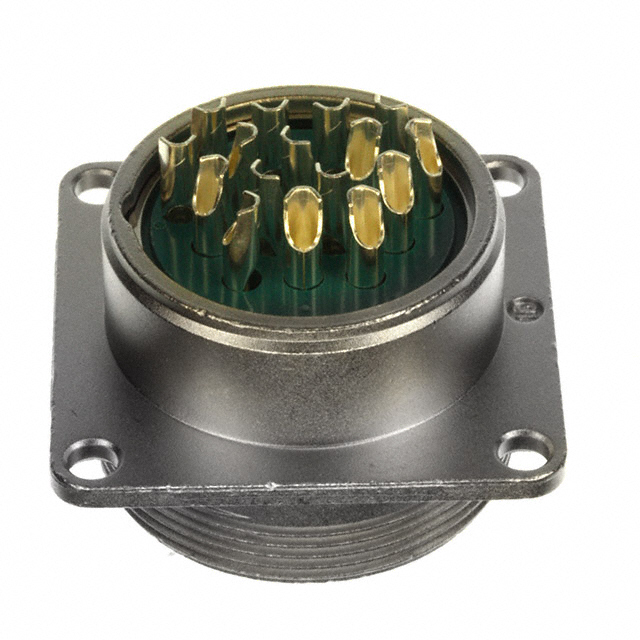

SRCN2A25-16S

Active

JAE Electronics

CONN RCPT FMALE 16P SOLDER CUP

Search across all available documentation for this part.

Active

JAE Electronics

CONN RCPT FMALE 16P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	SRCN2A25-16S

Applications	Communication Systems, Telecommunications, Test Equipment & Measurement
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Insert Material	Plastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	25-16
Voltage Rating	350 V, 250 VAC

Part	Shell Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Feature	Voltage Rating	Primary Material	Connector Type	Color	Shell Finish	Contact Material	Material Flammability Rating	Contact Finish - Mating	Applications	Insert Material	Shell Size - Insert	Number of Positions	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions
JAE Electronics SRCN2A25-16P	Aluminum Alloy	N	-25 °C	85 °C	10 A	Flange	250 VAC 350 V	Metal	Male Pins Receptacle	Silver	Nickel	Copper Alloy	UL94 V-0	Silver	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	25-16	16
JAE Electronics SRCN2A25-24S	Aluminum Alloy	N	-25 °C	85 °C	5 A	Flange	250 VAC 350 V	Metal	Receptacle Female Sockets	Silver	Nickel	Copper Alloy	UL94 V-0	Silver	Communication Systems Telecommunications Test Equipment & Measurement	Plastic			24	25	24
JAE Electronics SRCN2A25-24P	Aluminum Alloy	N	-25 °C	85 °C	5 A	Flange	250 VAC 350 V	Metal	Male Pins Receptacle	Silver	Nickel	Copper Alloy	UL94 V-0	Silver	Communication Systems Telecommunications Test Equipment & Measurement	Plastic			24	25	24
JAE Electronics SRCN2A25-16S	Aluminum Alloy	N	-25 °C	85 °C	10 A	Flange	250 VAC 350 V	Metal	Receptacle Female Sockets	Silver	Nickel	Copper Alloy	UL94 V-0	Silver	Communication Systems Telecommunications Test Equipment & Measurement	Plastic	25-16	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Receptacle, Female Sockets Solder Cup
