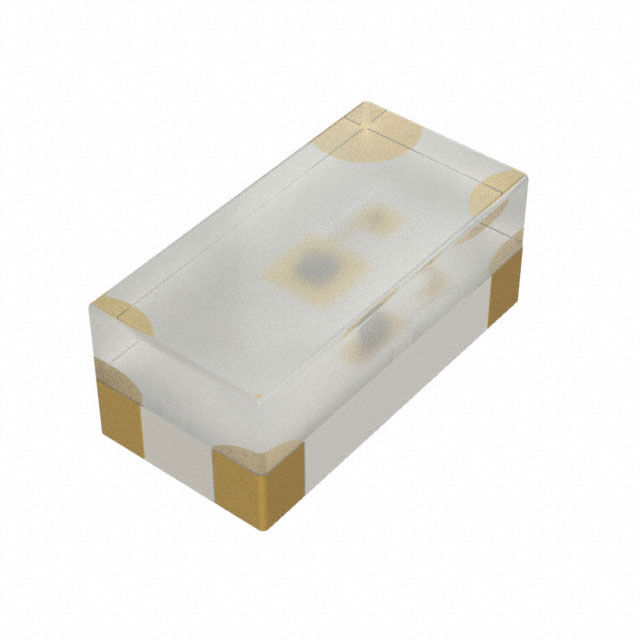

VLMW1502-GS08
ActiveVishay General Semiconductor - Diodes Division
LED COOL WHITE DIFFUSED 0402 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLMW1502-GS08
ActiveVishay General Semiconductor - Diodes Division
LED COOL WHITE DIFFUSED 0402 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMW1502-GS08 |
|---|---|
| Color | Cool, White |
| Configuration | Standard |
| Current - Test | 5 mA |
| Height (Max) [Max] [z] | 0.45 mm |
| Lens Color | Yellow |
| Lens Size [x] | 1 mm |
| Lens Size [y] | 0.5 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 126 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [y] | 0.5 mm |
| Supplier Device Package | 0402 |
| Viewing Angle | 65 ° |
| Voltage - Forward (Vf) (Typ) | 2.9 V |
| Wavelength - Dominant | 7000 K |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 9000 | $ 0.14 | |
| 15000 | $ 0.14 | |||
| 30000 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
VLMW1502 Series
White, Cool 7000K LED Indication - Discrete 2.9V 0402 (1005 Metric)
