PA1-1CB
ActiveTusonix a Subsidiary of CTS Electronic Components

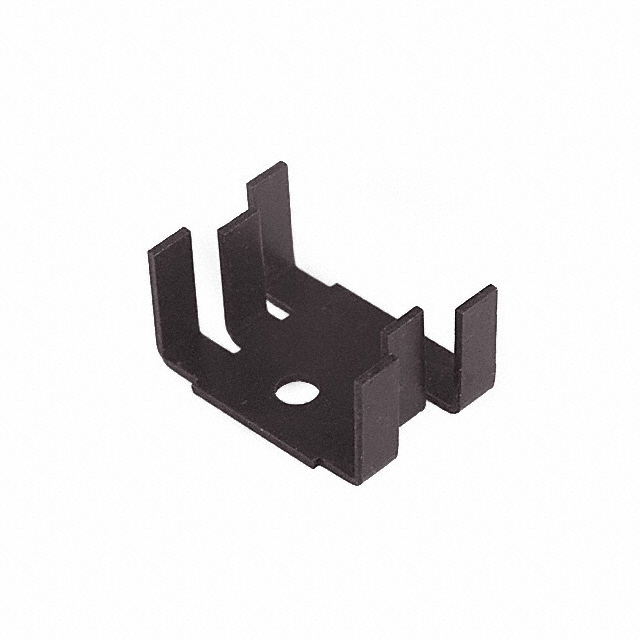

HEATSINK .50"H BLACK TO-220
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PA1-1CB
ActiveTusonix a Subsidiary of CTS Electronic Components
HEATSINK .50"H BLACK TO-220
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PA1-1CB |
|---|---|
| Attachment Method | Bolt On |
| Fin Height [z] | 12.7 mm |
| Fin Height [z] | 0.5 in |
| Length | 0.71 " |
| Length | 18.03 mm |
| Material | Aluminum |
| Material Finish | Black Anodized |
| Package Cooled | TO-126, TO-127, TO-220 |
| Shape | Rectangular, Fins |
| Thermal Resistance @ Natural | 28.8 °C/W |
| Type | Board Level |
| Width | 25.4 mm |
| Width [x] | 1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.43 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.07 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 1.00 | |||
| 5000 | $ 0.92 | |||
Description
General part information
PA1-1 Series
Heat Sink TO-126, TO-127, TO-220 Aluminum Board Level
