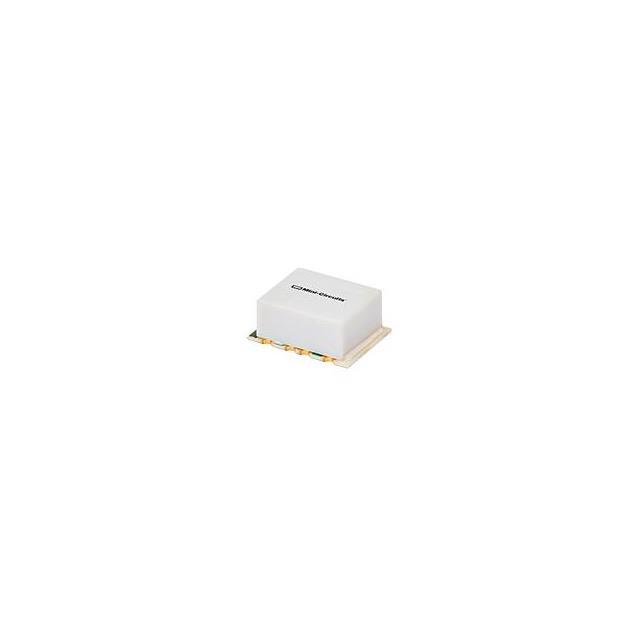

SYPS-3-152-75+
ActiveMINI-CIRCUITS
3 WAYS CORE & WIRE POWER SPLITTE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SYPS-3-152-75+
ActiveMINI-CIRCUITS
3 WAYS CORE & WIRE POWER SPLITTE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SYPS-3-152-75+ |
|---|---|
| Frequency [Max] | 1.5 GHz |
| Frequency [Min] | 5 MHz |
| Insertion Loss | 1.9 dB |
| Package / Case | 8-SMD, No Lead |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 0.38 in |
| Size / Dimension [y] | 9.65 mm |
| Size / Dimension [z] | 0.25 " |
| Size / Dimension [z] | 6.35 mm |
| Specifications [Max] | 1.8 VSWR, 8 ° |
| Specifications [Min] | 23 dB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 16.62 | |
| 10 | $ 15.71 | |||
| 25 | $ 15.26 | |||
| 50 | $ 14.80 | |||
| 100 | $ 14.04 | |||
| Digi-Reel® | 1 | $ 16.62 | ||
| 10 | $ 15.71 | |||
| 25 | $ 15.26 | |||
| 50 | $ 14.80 | |||
| 100 | $ 14.04 | |||
| Tape & Reel (TR) | 200 | $ 14.04 | ||
| 400 | $ 12.13 | |||
| 600 | $ 11.86 | |||
Description
General part information
SYPS-3 Series
RF Power Divider 5 MHz ~ 1.5 GHz Isolation (Min) 23dB, 8° Imbalance (Max), 1.8 VSWR (Max) 8-SMD, No Lead
