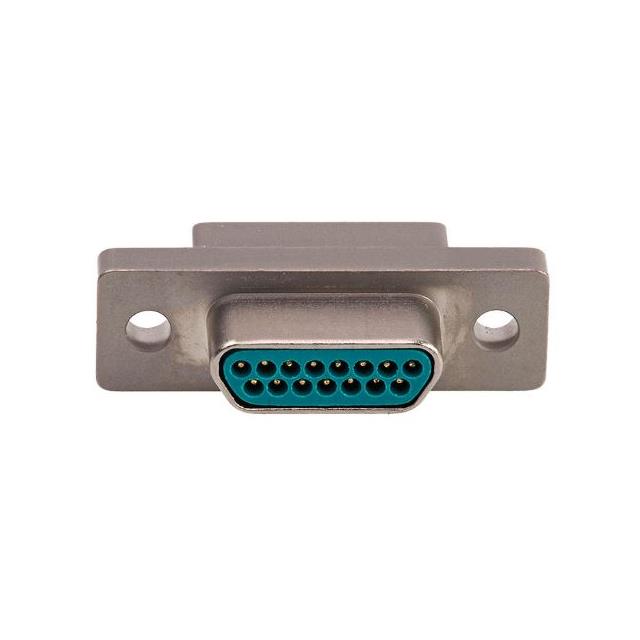

M83513/22-C01CP

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLG 21POS VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

M83513/22-C01CP

Active

Cinch Connectivity Solutions Trompeter

CONN MICRO-D PLG 21POS VERT SLDR

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M83513/22-C01CP

Connector Style	Micro-D, D-Type
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester, Glass Filled
Flange Feature	Mating Side, Female Screwlock (2-56)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	21
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Yellow Chromate Plated Cadmium, Aluminum Alloy
Shell Size, Connector Layout [custom]	0.05
Shell Size, Connector Layout [custom]	0.05
Termination	Solder

M83513/22 Series

Part	Shell Material, Finish	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Material Flammability Rating	Termination	Contact Finish	Dielectric Material	Contact Type	Current Rating (Amps)	Number of Positions	Mounting Type	Contact Material	Connector Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature
Cinch Connectivity Solutions Trompeter M83513/22-A01NP	Aluminum Alloy Electroless Nickel Plated	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A	9	Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side
Cinch Connectivity Solutions Trompeter M83513/22-C01CP	Aluminum Alloy Yellow Chromate Plated Cadmium	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A	21	Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side
Cinch Connectivity Solutions Trompeter M83513/22-F01NP	Aluminum Alloy Electroless Nickel Plated	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A	37	Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side
Cinch Connectivity Solutions Trompeter M83513/22-B01CP	Aluminum Alloy Yellow Chromate Plated Cadmium	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A	15	Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side
Cinch Connectivity Solutions Trompeter M83513/22-D01CP	Aluminum Alloy Yellow Chromate Plated Cadmium	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A		Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side
Cinch Connectivity Solutions Trompeter M83513/22-E01CP	Aluminum Alloy Yellow Chromate Plated Cadmium	2	-55 °C	125 °C	50 µin	1.27 µm	D-Type Micro-D	UL94 V-0	Solder	Gold	Polyester Glass Filled	Signal	3 A	31	Through Hole	Copper Alloy	Male Pins Plug	0.05	0.05	Female Screwlock (2-56) Mating Side

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	50	$ 85.45
	Bulk	1	$ 54.54
		1	$ 889.27

Description

General part information

M83513/22 Series

21 Position D-Type, Micro-D Plug, Male Pins Connector

Documents

Technical documentation and resources

No documents available
