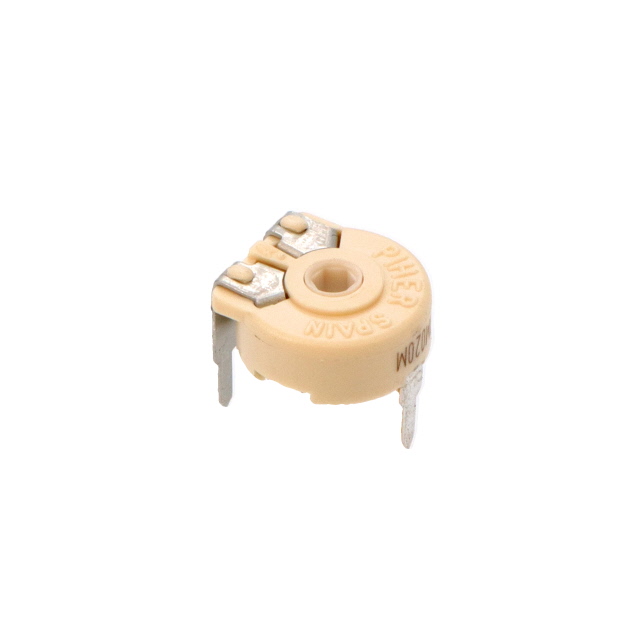

PTC10MV10-105A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 1M OHM 0.33W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTC10MV10-105A2020
ActiveAmphenol Piher Sensing Systems
TRIMMER 1M OHM 0.33W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTC10MV10-105A2020 |
|---|---|
| Adjustment Type | Top Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.33 W |
| Resistance | 1 MOhms |
| Resistive Material | Cermet |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.406 in |
| Size / Dimension [diameter] | 10.3 mm |
| Temperature Coefficient | 100 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 1.79 | |
| 10 | $ 1.44 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.23 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.06 | |||
| 500 | $ 0.99 | |||
| 1000 | $ 0.92 | |||
| 5000 | $ 0.79 | |||
Description
General part information
PTC10MV10 Series
1 MOhms 0.33W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
