173-050-212R141

Obsolete

MH Connectors

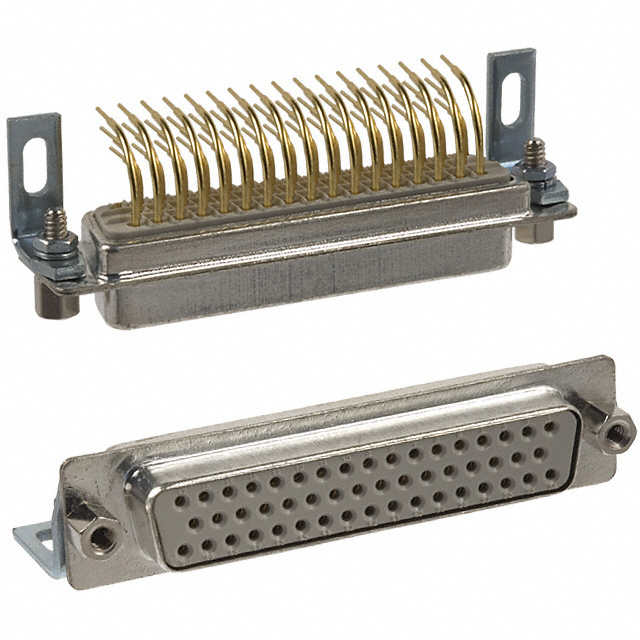

CONN D-SUB RCPT 50POS R/A SLDR

Search across all available documentation for this part.

Obsolete

MH Connectors

CONN D-SUB RCPT 50POS R/A SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	173-050-212R141

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Beige
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Polyester
Features	Mounting Brackets
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	50
Number of Rows	3
Shell Size, Connector Layout	5
Termination	Solder

Part	Mounting Type	Current Rating (Amps)	Backset Spacing	Backset Spacing	Termination	Flange Feature	Dielectric Material	Number of Positions	Shell Size, Connector Layout	Material Flammability Rating	Features	Connector Style	Number of Rows	Contact Finish	Shell Material, Finish	Contact Finish Thickness	Contact Type	Color	Connector Type	Contact Material
MH Connectors 173-050-111-141	Panel Mount Right Angle Through Hole	5 A	0.283 in	7.2 mm	Solder	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT)	50	5	UL94 V-0	Mounting Brackets	D-Sub	3	Gold	Steel Yellow Chromate Plated	Flash	Signal	Beige	Male Pins Plug
MH Connectors 173-050-212R141	Panel Mount Right Angle Through Hole	5 A	0.283 in	7.2 mm	Solder	Female Screwlock (4-40) Mating Side	Polybutylene Terephthalate (PBT) Polyester	50	5	UL94 V-0	Mounting Brackets	D-Sub	3	Gold		Flash	Signal	Beige	Receptacle Female Sockets	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

50 Position D-Sub Receptacle, Female Sockets Connector
