R191386000

Active

Radiall USA, Inc.

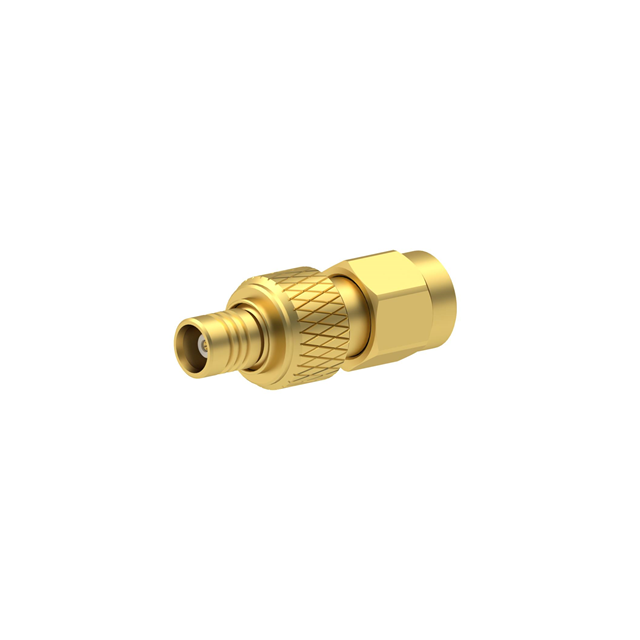

SMA MALE - MCX FEMALE STRAIGHT A

Deep-Dive with AI

Search across all available documentation for this part.

R191386000

Active

Radiall USA, Inc.

SMA MALE - MCX FEMALE STRAIGHT A

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191386000

Adapter Series	SMA to MCX
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, MCX Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

R19138 Series

Part	Center Gender	Frequency - Max [Max]	Mounting Type	Fastening Type	Adapter Type	Impedance	Convert To (Adapter End)	Convert From (Adapter End)	Dielectric Material	Adapter Series	Style	Mating Cycles	Body Finish	Body Material	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Plating	Center Contact Material	Mounting Feature
Radiall USA, Inc. R191389100	Male to Male	12.4 GHz	Free Hanging (In-Line)	Snap-On Threaded	Plug to Plug	50 Ohms	Male Pin MMBX Plug	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)	SMA to MMBX	Straight	500	Gold	Brass	Between Series	155 °C	-55 °C	Gold	Beryllium Copper
Radiall USA, Inc. R191389400	Female to Female	12.4 GHz	Free Hanging (In-Line)	Snap-On Threaded	Jack to Jack	50 Ohms	Female Socket MMBX Jack	Female Socket SMA Jack	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	SMA to MMBX	Straight	500	Gold	Brass	Between Series	155 °C	-55 °C	Gold	Beryllium Copper
Radiall USA, Inc. R191389300		12.4 GHz	Free Hanging (In-Line)	Snap-On Threaded	Plug to Jack	50 Ohms	Female Socket MMBX Jack	SMA Plug Male Pin	Liquid Crystal Polymer (LCP) Polytetrafluoroethylene (PTFE)	SMA to MMBX	Straight	500	Gold	Brass	Between Series	155 °C	-55 °C	Gold	Beryllium Copper
Radiall USA, Inc. R191386000		6000 MHz	Free Hanging (In-Line)	Snap-On Threaded	Plug to Jack	50 Ohms	Female Socket MCX Jack	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)	SMA to MCX	Straight	500	Gold	Stainless Steel	Between Series	155 °C	-55 °C	Gold	Beryllium Copper
Radiall USA, Inc. R191381000	Female to Female	11 GHz			Jack to Jack	50 Ohms	Female Socket SMA Jack	Female Socket N Jack	Polytetrafluoroethylene (PTFE)		Straight	500	Nickel	Brass	Between Series	155 °C	-55 °C	Nickel	Beryllium Copper	Bulkhead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 127.38

Description

General part information

R19138 Series

Adapter Coaxial Connector SMA Plug, Male Pin To MCX Jack, Female Socket 50 Ohms
