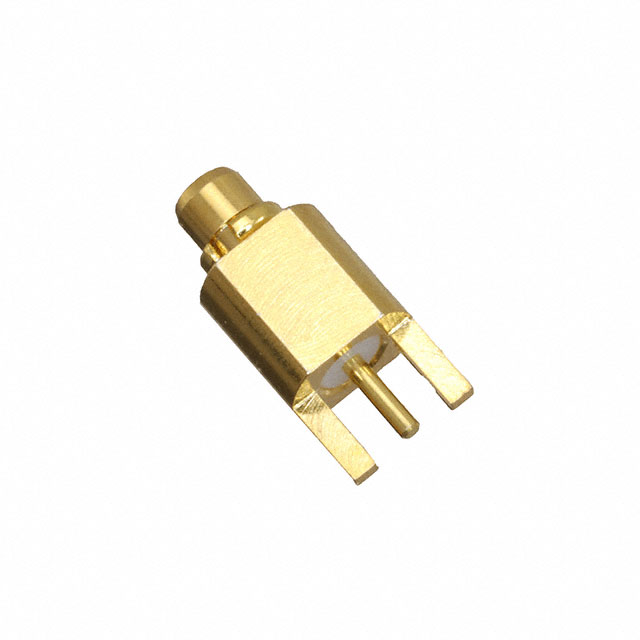

RF12-35-T-00-50-G

Active

Adam Tech

RF MMCX CONNECTOR

Search across all available documentation for this part.

Active

Adam Tech

RF MMCX CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	RF12-35-T-00-50-G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	White
Impedance	50 Ohms
Mounting Type	Cutout, Board Edge, Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	170 V

Part	Mounting Type	Voltage Rating	Impedance	Shield Termination	Center Contact Plating	Contact Termination	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Connector Type	Frequency - Max [Max]	Body Finish	Center Contact Material	Dielectric Material	Body Material	Number of Ports	Connector Style
Adam Tech RF12-35-T-00-50-G	Board Edge Cutout Surface Mount	170 V	50 Ohms	Solder	Gold	Solder	Snap-On	155 °C	-55 °C	White	Male Pin Plug	6000 MHz	Gold	Brass	Polytetrafluoroethylene (PTFE)	Brass	1	MMCX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMCX Connector Plug, Male Pin 50 Ohms Board Edge, Cutout; Surface Mount Solder
