DF3-12P-2DS

Obsolete

Hirose Electric USA, Inc.

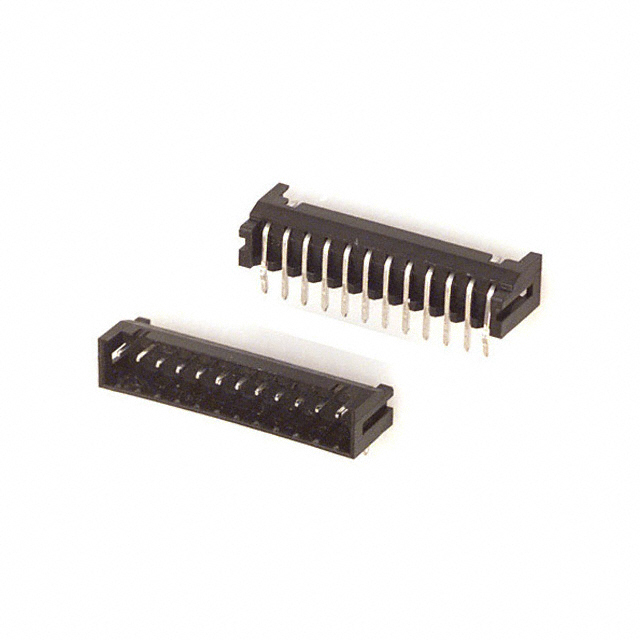

CONN HEADER R/A 12POS 2MM

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HEADER R/A 12POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	DF3-12P-2DS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating [x]	0.122 in
Contact Length - Mating [x]	3.1 mm
Contact Length - Post	0.114 in
Contact Length - Post	2.9 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder, Press-Fit

Part	Number of Rows	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Shrouding	Insulation Color	Number of Positions Loaded	Connector Type	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Fastening Type	Current Rating (Amps)	Contact Length - Post	Contact Length - Post	Contact Type	Termination	Contact Shape	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Material	Contact Finish - Post
Hirose Electric USA, Inc. DF3-12P-2DS(01)	1	Gold	0.122 in	3.1 mm	Shrouded - 4 Wall	Black	All	Header	0.197 in	5 mm	Brass	105 ░C	-55 °C	UL94 V-0	Push-Pull	3 A	0.114 in	2.9 mm	Male Pin	Press-Fit Solder	Square	12	0.079 in	2 mm	Board to Board Cable	0.203 Ám	8 Áin	Through Hole Right Angle	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF3-12P-2DS	1		0.122 in	3.1 mm	Shrouded - 4 Wall	Black	All	Header	0.197 in	5 mm	Brass	105 ░C	-55 °C	UL94 V-0	Push-Pull	3 A	0.114 in	2.9 mm	Male Pin	Press-Fit Solder	Square	12	0.079 in	2 mm	Board to Board Cable			Through Hole Right Angle	Nylon Polyamide (PA)	Tin
