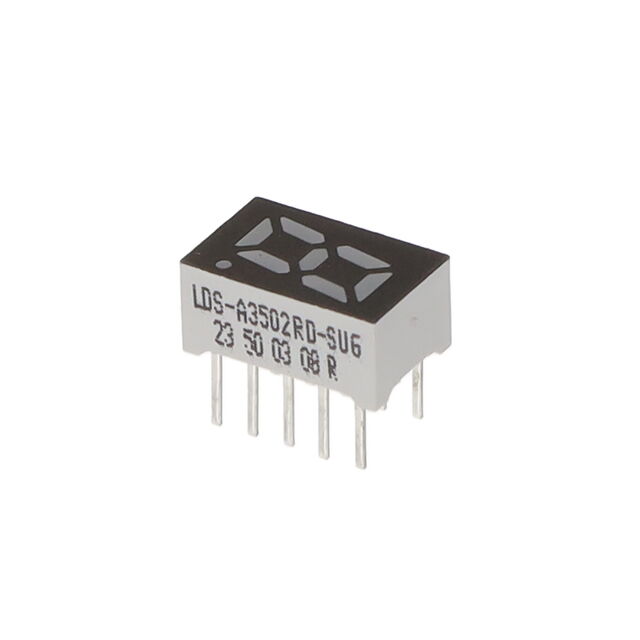

LDS-A3502RD-SUG
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.32" SGL GRN 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
LDS-A3502RD-SUG
ActiveLumex Opto/Components Inc.
DISPLAY 7SEG 0.32" SGL GRN 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LDS-A3502RD-SUG |
|---|---|
| Color | Green |
| Common Pin | Common Anode |
| Current - Test | 10 mA |
| Digit/Alpha Size | 8 mm |
| Digit/Alpha Size | 0.32 in |
| Display Type | 7-Segment |
| Millicandela Rating | 12 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-DIP |
| Power Dissipation (Max) [Max] | 105 mW |
| Size / Dimension [x] | 11 mm |
| Size / Dimension [x] | 0.433 in |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [y] | 0.276 in |
| Size / Dimension [z] | 5 mm |
| Size / Dimension [z] | 0.197 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.38 | |
| 40 | $ 2.39 | |||
| 120 | $ 1.96 | |||
| 1000 | $ 1.51 | |||
| 5000 | $ 1.42 | |||
Description
General part information
LDS-A3502 Series
Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 2V 10mA 0.433" H x 0.276" W x 0.197" D (11.00mm x 7.00mm x 5.00mm) 10-DIP (0.209", 5.30mm)
Documents
Technical documentation and resources
No documents available
