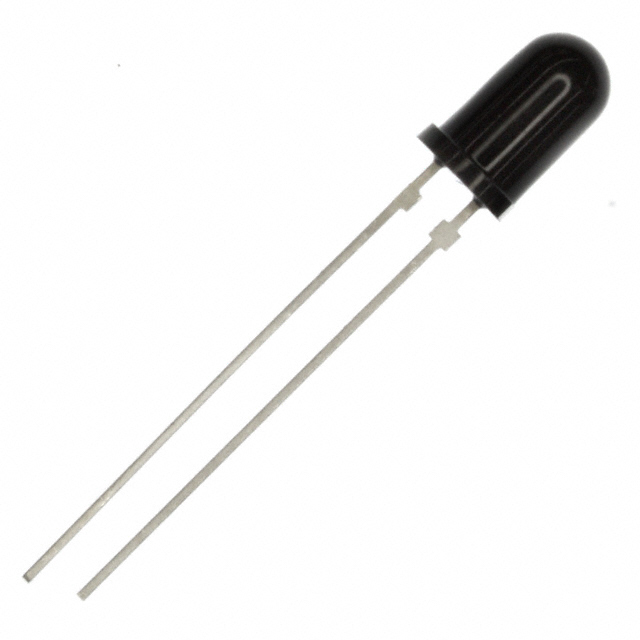

SFH 300 FA-3/4

Active

ams-OSRAM USA INC.

SENSOR PHOTO 880NM TOP VIEW RAD

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

SENSOR PHOTO 880NM TOP VIEW RAD

Technical Specifications

Parameters and characteristics for this part

Specification	SFH 300 FA-3/4

Current - Collector (Ic) (Max) [Max]	50 mA
Current - Dark (Id) (Max) [Max]	50 nA
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	Radial
Power - Max [Max]	200 mW
Viewing Angle	50 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V
Wavelength	880 nm

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Collector Emitter Breakdown (Max) [Max]	Wavelength	Mounting Type	Current - Dark (Id) (Max) [Max]	Viewing Angle	Orientation	Power - Max [Max]	Package / Case	Current - Collector (Ic) (Max) [Max]
ams-OSRAM USA INC. SFH 300 FA-3/4	100 °C	-40 °C	35 V	880 nm	Through Hole	50 nA	50 °	Top View	200 mW	Radial	50 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 880nm Top View Radial
