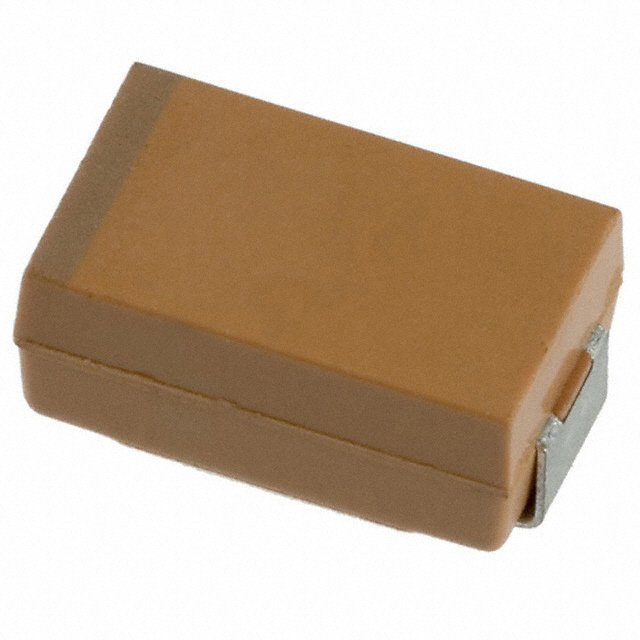

NOJD227M006RWJ

Active

Kyocera AVX

CAP NIOB OXI 220UF 20% 6.3V 2917

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NOJD227M006RWJ

Active

Kyocera AVX

CAP NIOB OXI 220UF 20% 6.3V 2917

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NOJD227M006RWJ

Capacitance	220 µF
Current - Leakage	26.4 µA
Dissipation Factor	8 %
ESR (Equivalent Series Resistance)	400 mOhms
Height - Seated (Max) [Max] [z]	0.122 "
Height - Seated (Max) [Max] [z]	3.1 mm
Manufacturer Size Code	D
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	7343 Metric
Package / Case	2917
Size / Dimension [x]	0.287 "
Size / Dimension [x]	7.3 mm
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 "
Supplier Device Package	2917 (7343 Metric)
Tolerance	20 %
Voltage - Rated	6.3 V

NOJD Series

Part	Manufacturer Size Code	Capacitance	ESR (Equivalent Series Resistance)	Mounting Type	Supplier Device Package	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Leakage	Dissipation Factor	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Features
Kyocera AVX NOJD227M006SWJ	D	220 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	26.4 µA	8 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD107M010RWB	D	100 µF	150 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	20 µA	12 %	10 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %	Low ESR
Kyocera AVX NOJD107K006RWJ	D	100 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	12 µA	6 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	10 %
Kyocera AVX NOJD337M006SWJ	D	330 µF	300 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	39.6 µA	10 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD337M004RWJ	D	330 µF	300 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	26.4 µA	8 %	4 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD107M010RWJ	D	100 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	20 µA	12 %	10 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD107M006SWJ	D	100 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	12 µA	6 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD227M006RWJ	D	220 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	26.4 µA	8 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD157M006RWJ	D	150 µF	400 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	18 µA	6 %	6.3 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %
Kyocera AVX NOJD477M002SWJ	D	470 µF	300 mOhms	Surface Mount	2917 (7343 Metric)	7343 Metric	2917	105 ░C	-55 °C	23.5 µA	12 %	2.5 V	0.122 "	3.1 mm	4.3 mm	0.287 "	7.3 mm	0.169 "	20 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.45
		10	$ 1.09
		50	$ 0.99
		100	$ 0.81
	Digi-Reel®	1	$ 1.45
		10	$ 1.09
		50	$ 0.99
		100	$ 0.81
	Tape & Reel (TR)	500	$ 0.64

Description

General part information

NOJD Series

220 µF Niobium Oxide Capacitor 6.3 V 2917 (7343 Metric) 400 mOhms
