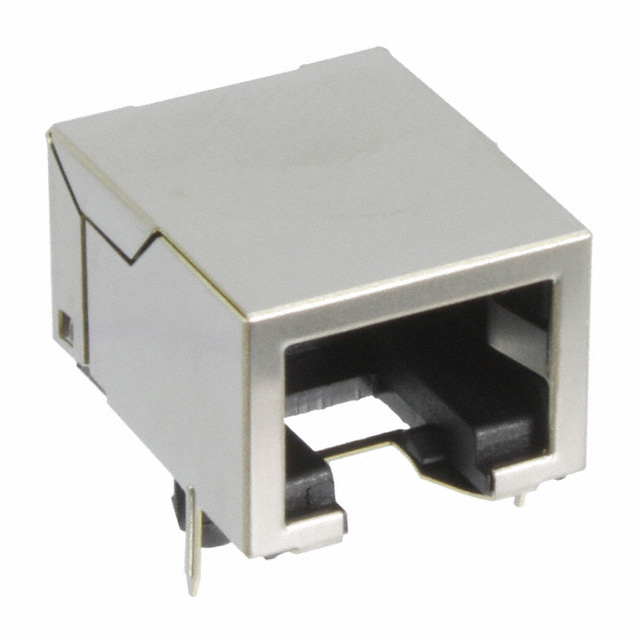

RJE051881210

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	RJE051881210

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shielding	Shielded
Tab Direction	Down
Termination	Solder

Part	Mounting Type	Tab Direction	LED Color	Number of Positions/Contacts	Shielding	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Connector Type	Orientation	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Ports	Termination
Amphenol ICC (Commercial Products) RJE051880210	Through Hole	Down	Does Not Contain LED	8p8c (RJ45 Ethernet)	Unshielded	1	85 °C	-40 °C	Thermoplastic	Jack	90 °	Phosphor Bronze	15 µin	0.38 µm	Gold	1	Solder
Amphenol ICC (Commercial Products) RJE051881410	Through Hole	Down	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	1	85 °C	-40 °C	Thermoplastic	Jack	90 °	Phosphor Bronze	50 µin	1.27 µm	Gold	1	Solder
Amphenol ICC (Commercial Products) RJE051881210	Through Hole	Down	Does Not Contain LED	8p8c (RJ45 Ethernet)	Shielded	1	85 °C	-40 °C	Thermoplastic	Jack	90 °	Phosphor Bronze	15 µin	0.38 µm	Gold	1	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1200	$ 1.43

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
