EAST16084GA1

Active

Everlight Electronics Co Ltd

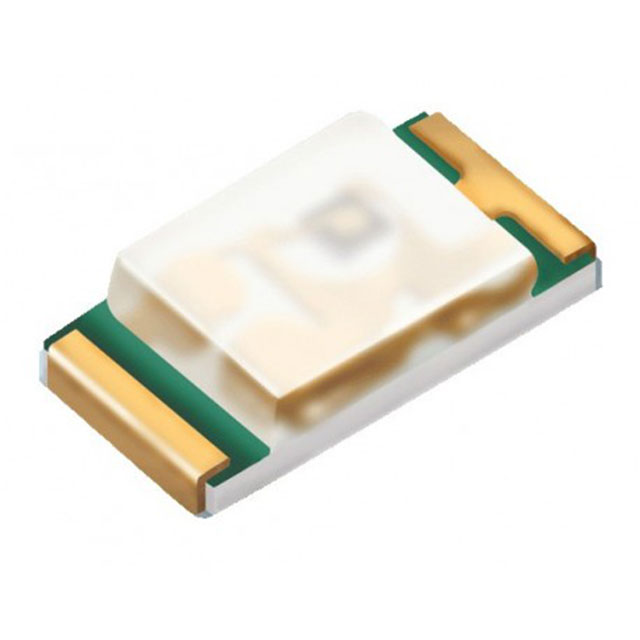

LED GREEN CLEAR 0603 SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EAST16084GA1

Active

Everlight Electronics Co Ltd

LED GREEN CLEAR 0603 SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EAST16084GA1

Color	Green
Current - Test	20 mA
Height (Max) [Max] [z]	0.5 mm
Lens Color	Colorless
Lens Size [x]	1 mm
Lens Size [y]	0.8 mm
Lens Style	Rectangle with Flat Top
Lens Transparency	Clear
Millicandela Rating	198.5 mcd
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Size / Dimension [x]	1.6 mm
Size / Dimension [y]	0.8 mm
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V
Wavelength - Dominant	527.5 nm
Wavelength - Peak	518 nm

EAST16084 Series

Part	Lens Style	Color	Viewing Angle	Height (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Current - Test	Lens Color	Configuration	Mounting Type	Package / Case	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	Lens Size [x]	Lens Size [y]	Wavelength - Peak	Millicandela Rating	Wavelength - Dominant
Everlight Electronics Co Ltd EAST16084WB0	Rectangle with Flat Top	White	130 °	0.5 mm	2.8 V	5 mA	Yellow	Standard	Surface Mount	0603 (1608 Metric)	Diffused	1.6 mm	0.8 mm	2-SMD	1 mm	0.8 mm
Everlight Electronics Co Ltd EAST16084YA1	Rectangle with Flat Top	Yellow	120 °	0.5 mm	2.05 V	20 mA	Colorless	Standard	Surface Mount	0603 (1608 Metric)	Clear	1.6 mm	0.8 mm	2-SMD	1 mm	0.8 mm	591 nm	79 mcd	590 nm
Everlight Electronics Co Ltd EAST16084WA4	Rectangle with Flat Top	White	130 °	0.5 mm	3 V	5 mA	Yellow	Standard	Surface Mount	0603 (1608 Metric)	Diffused	1.6 mm	0.8 mm	2-SMD	1 mm	0.8 mm		126 mcd
Everlight Electronics Co Ltd EAST16084AA0	Rectangle with Flat Top		120 °	0.5 mm	2 V	5 mA	Colorless	Standard	Surface Mount	0603 (1608 Metric)	Clear	1.6 mm	0.8 mm	2-SMD	1.6 mm	0.8 mm	611 nm	20 mcd	607 nm
Everlight Electronics Co Ltd EAST16084BA1	Rectangle with Flat Top	Blue	120 °	0.5 mm	3.2 V	20 mA	Colorless	Standard	Surface Mount	0603 (1608 Metric)	Clear	1.6 mm	0.8 mm	2-SMD	1 mm	0.8 mm	468 nm	70 mcd	471 nm
Everlight Electronics Co Ltd EAST16084GA1	Rectangle with Flat Top	Green	120 °	0.5 mm	3.3 V	20 mA	Colorless		Surface Mount	0603 (1608 Metric)	Clear	1.6 mm	0.8 mm		1 mm	0.8 mm	518 nm	198.5 mcd	527.5 nm
Everlight Electronics Co Ltd EAST16084OA0	Rectangle with Flat Top		120 °	0.5 mm	2 V	5 mA	Colorless	Standard	Surface Mount	0603 (1608 Metric)	Clear	1.6 mm	0.8 mm	2-SMD	1 mm	0.8 mm	621 nm	25 mcd	616 nm
Everlight Electronics Co Ltd EAST16084WA1	Rectangle with Flat Top	White	130 °	0.5 mm	2.925 V	5 mA	Yellow		Surface Mount	0603 (1608 Metric)	Diffused	1.6 mm	0.8 mm		1 mm	0.8 mm		126 mcd
