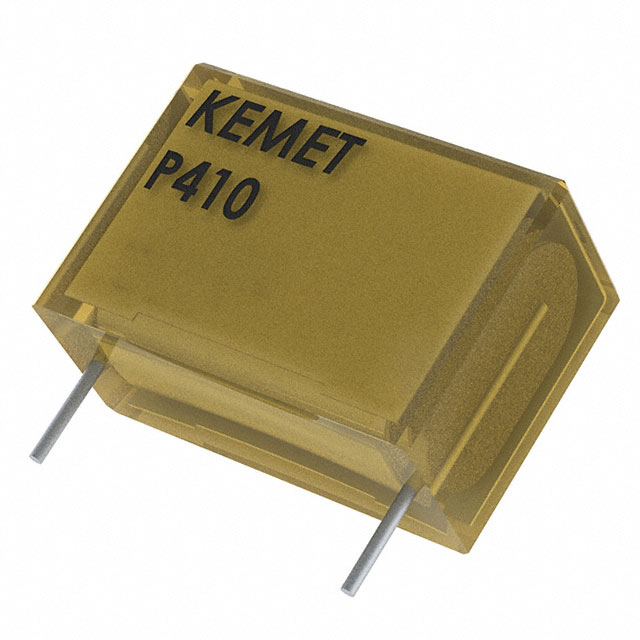

P410EE104M300AH101
ActiveKEMET
FILTER RC 100 OHMS/0.1UF TH
Deep-Dive with AI
Search across all available documentation for this part.
P410EE104M300AH101
ActiveKEMET
FILTER RC 100 OHMS/0.1UF TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | P410EE104M300AH101 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 16.1 mm |
| Height [z] | 0.634 " |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Resistance - Channel (Ohms) | 100 Ohms |
| Size / Dimension [x] | 1.201 in |
| Size / Dimension [x] | 30.5 mm |
| Size / Dimension [y] | 0.417 " |
| Size / Dimension [y] | 10.6 mm |
| Technology | RC |
| Type | Low Pass |
| Values | 100 Ohms, 0.1 µF |
| Voltage - Rated | 300 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.43 | |
| 10 | $ 3.22 | |||
| 50 | $ 2.67 | |||
| 150 | $ 2.39 | |||
| 600 | $ 2.11 | |||
| 1050 | $ 2.02 | |||
| 2550 | $ 1.89 | |||
| 5100 | $ 1.80 | |||
Description
General part information
P410EE Series
RC EMI Filter 1st Order Low Pass 1 Channel R = 100Ohms, C = 0.1µF Radial
