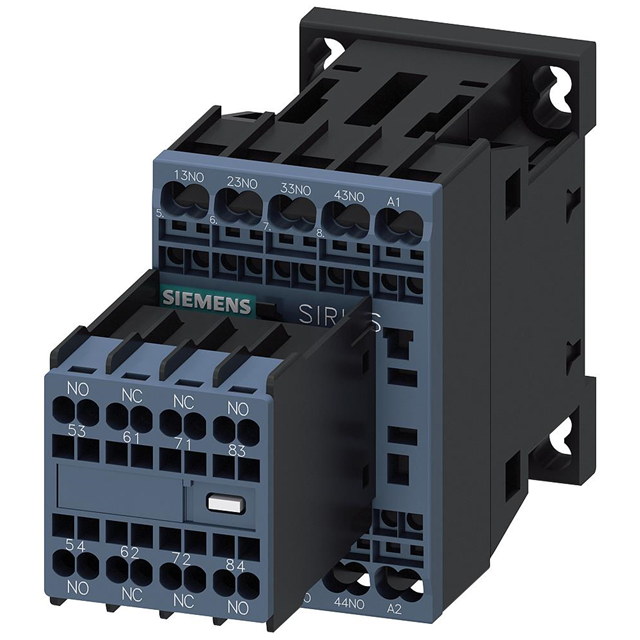

3RH23622GG20
ActiveSiemens
CONTACTOR RELAY 6NO+2NC AC 110V
Deep-Dive with AI
Search across all available documentation for this part.
3RH23622GG20
ActiveSiemens
CONTACTOR RELAY 6NO+2NC AC 110V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3RH23622GG20 |
|---|---|
| Coil Power | 5.7 VA |
| Coil Voltage | 110 VAC/DC |
| Contact Form | 8PST-6NO/2NC (6 Form A, 2 Form B) |
| Contact Rating (Current) | 10 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 93.5 VAC |
| Operate Time | 100 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 65 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Spring Terminal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 179.52 | |
Description
General part information
3RH23622 Series
CONTACTOR RELAY 6NO+2NC AC 110V
Documents
Technical documentation and resources
