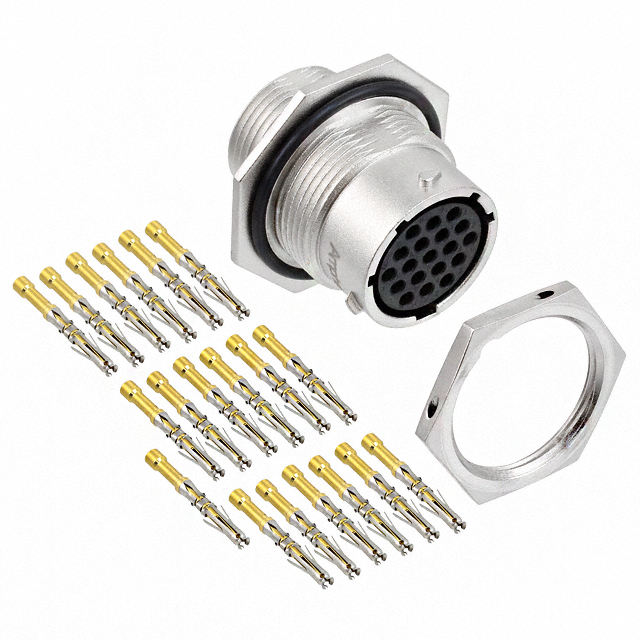

RT0W71419SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ecomate-Family-Flyer-2019

RT0W71419SNH-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 19POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet ecomate-Family-Flyer-2019

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT0W71419SNH-K

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert [Max] [custom]	19
Shell Size - Insert [Min] [custom]	14
Termination	Crimp
Voltage Rating	150 VAC

RT0W71419 Series

Part	Note	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Insert Material	Number of Positions	Features	Contact Size	Includes	Orientation	Type	Contact Type	Connector Type	Fastening Type	Ingress Protection	Shell Finish	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Shielding	Material Flammability Rating	Housing Color	Shell Material	Termination	Contact Finish Thickness - Mating	Voltage Rating	Color	Primary Material	Current Rating (Amps)	Contact Finish - Mating
Amphenol Sine Systems Corp RT0W71419PNHEC	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19	Backshell	20	1 Connector 1 Nut 1 O-Ring	N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNH03	Contacts Not Included	Circular	-40 °C	125 °C	Bulkhead - Front Side Nut	Thermoplastic	19		20	1 Connector 1 Gasket 1 Nut 1 O-Ring	N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNHEC03
Amphenol Sine Systems Corp RT0W71419SNH	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19		20		N	For Female Sockets	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419PNH	Contacts Not Included	Circular	-40 °C	105 ░C	Bulkhead - Front Side Nut	Thermoplastic	19		20		N	For Male Pins	Crimp	Receptacle Housing	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14	Shielded	UL94 V-0	Silver	Zinc Alloy
Amphenol Sine Systems Corp RT0W71419SNH-K			-40 °C	105 ░C	Bulkhead - Front Side Nut		19				N			Receptacle Female Sockets	Bayonet Lock	IP67 - Dust Tight Waterproof	Nickel	19	14				Zinc Die Cast	Crimp	Flash	150 VAC	Silver	Metal	7.5 A	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 64.42
		10	$ 49.97
		25	$ 45.39
		50	$ 42.30
		100	$ 39.50
		250	$ 36.21

Description

General part information

RT0W71419 Series

19 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

Datasheet

ecomate-Family-Flyer-2019

Datasheet
