RJULE4218201
ActiveAmphenol ICC (Commercial Products)

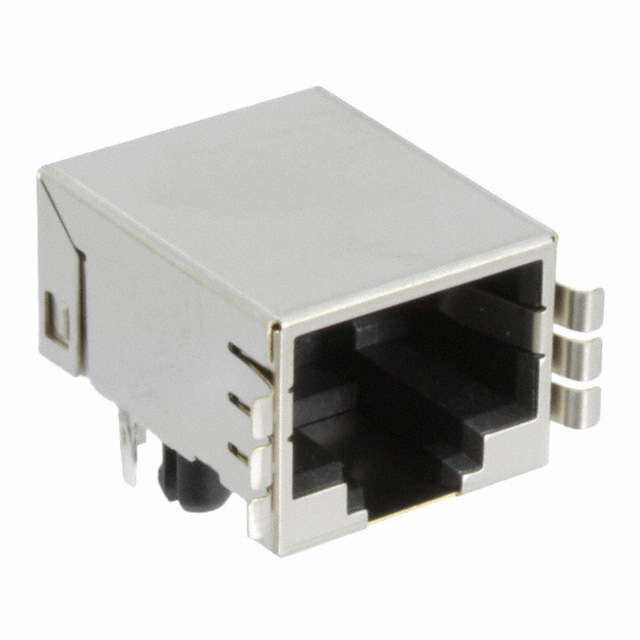

CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RJULE4218201
ActiveAmphenol ICC (Commercial Products)
CONN MOD JACK 8P8C R/A SHIELDED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RJULE4218201 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole, Board Edge, Panel Mount |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | 90 ° |
| Shielding | Shielded |
| Tab Direction | Down |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.15 | |
| 10 | $ 2.40 | |||
| 25 | $ 2.17 | |||
| 40 | $ 2.05 | |||
| 80 | $ 1.90 | |||
| 230 | $ 1.70 | |||
| 440 | $ 1.59 | |||
| 945 | $ 1.47 | |||
| 2400 | $ 1.34 | |||
Description
General part information
RJULE4 Series
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded
