FL141-6NM+

Active

MINI-CIRCUITS

CBL ASSY NTYPE PLUG TO PLUG 6"

Search across all available documentation for this part.

Active

MINI-CIRCUITS

CBL ASSY NTYPE PLUG TO PLUG 6"

Technical Specifications

Parameters and characteristics for this part

Part	Frequency - Max [Max]	1st Contact Gender	Style	1st Connector	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	Color	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length	2nd Connector	1st Connector Mounting Type
MINI-CIRCUITS FL141-12SM+	18 GHz	Male	SMA to SMA	SMA Plug	Free Hanging (In-Line)	Male	Hand Formable .141	Blue	50 Ohms	105 ░C	-55 °C	12 "	304.8 mm	SMA Plug	Free Hanging (In-Line)
MINI-CIRCUITS FL141-6SM+	18 GHz	Male	SMA to SMA	SMA Plug	Free Hanging (In-Line)	Male	Hand Formable .141	Blue	50 Ohms	105 ░C	-55 °C	6 in	152.4 mm	SMA Plug	Free Hanging (In-Line)
MINI-CIRCUITS FL141-12NM+	18 GHz	Male	N-Type to N-Type		Free Hanging (In-Line)	Male	Hand Formable .141	Blue	50 Ohms	105 ░C	-55 °C	12 "	304.8 mm	N-Type Plug	Free Hanging (In-Line)
MINI-CIRCUITS FL141-24SM+	18 GHz	Male	SMA to SMA	SMA Plug	Free Hanging (In-Line)	Male	Hand Formable .141	Blue	50 Ohms	105 ░C	-55 °C	24 "	609.6 mm	SMA Plug	Free Hanging (In-Line)
MINI-CIRCUITS FL141-6NM+	18 GHz	Male	N-Type to N-Type		Free Hanging (In-Line)	Male	Hand Formable .141	Blue	50 Ohms	105 ░C	-55 °C	6 in	152.4 mm	N-Type Plug	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

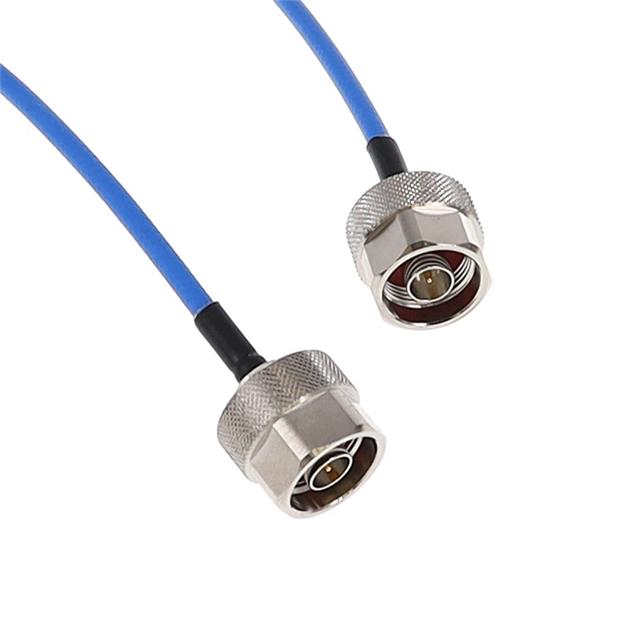

Cable Assembly Coaxial N-Type to N-Type Hand Formable .141 6.000" (152.40mm)
