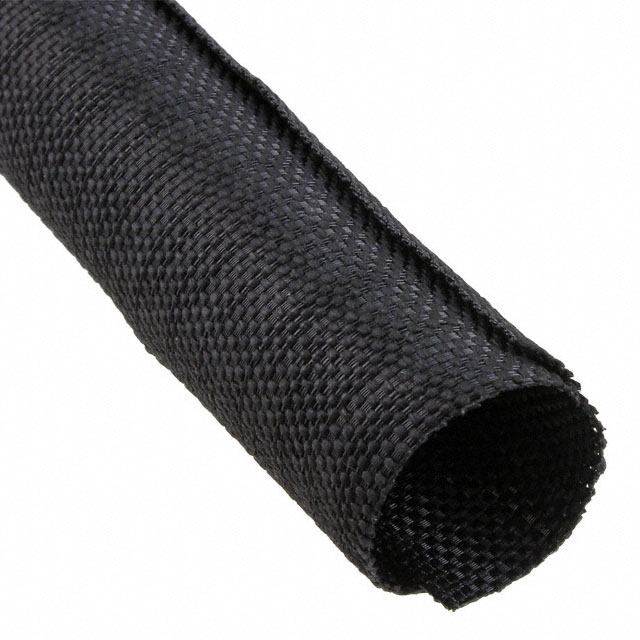

F6W1.00BK50

Active

Techflex

SELF WRAP 1" X 50' BLACK

Search across all available documentation for this part.

Active

Techflex

SELF WRAP 1" X 50' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	F6W1.00BK50

Abrasion Protection	Abrasion Resistant
Color	Black
Diameter - Outside, Non-Expanded [diameter]	25.4 mm
Diameter - Outside, Non-Expanded [diameter]	1 "
Features	Clean Cut
Length	15.24 m
Length [x]	50 ft
Material	Polyethylene Terephthalate (PET), Halogen Free
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Type	Self Wrap
Type Attributes	Split Flexible Tube
Wall Thickness	0.69 mm
Wall Thickness	0.027 in

Part	Type	Color	Wall Thickness	Wall Thickness	Material	Features	Abrasion Protection	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Material Flammability Rating	Type Attributes	Operating Temperature [Max]	Operating Temperature [Min]	Length	Length [x]
Techflex F6W1.00BK50	Self Wrap	Black	0.69 mm	0.027 in	Polyethylene Terephthalate (PET) Halogen Free	Clean Cut	Abrasion Resistant	25.4 mm	1 "	UL94 V-0	Split Flexible Tube	125 °C	-70 °C	15.24 m	50 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Self Wrap 1.000" (25.40mm) X 50.00' (15.24m) Black
