W7A82-8SG-300

Active

Conxall/Switchcraft

CONN RCPT FMALE 8P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT FMALE 8P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	W7A82-8SG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions [custom]	8
Number of Positions [custom]	6
Number of Positions [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Primary Material	Orientation	Voltage Rating	Current Rating (Amps)	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Backshell Material, Plating	Features	Shielding	Contact Finish - Mating	Contact Material	Ingress Protection	Mounting Feature	Applications	Fastening Type
Conxall/Switchcraft W7A82-8SG-300	Plastic	Keyed	250 VDC	Varies by Wire Gauge	8	6	2	Thermoplastic	85 °C	-40 °C	Black	Receptacle Female Sockets	Thermoplastic	UV Resistant	Unshielded	Gold	Copper Alloy	IP67 IP69K	Bulkhead - Front Side Nut	Automotive Communication Systems Instrumentation	Bayonet Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

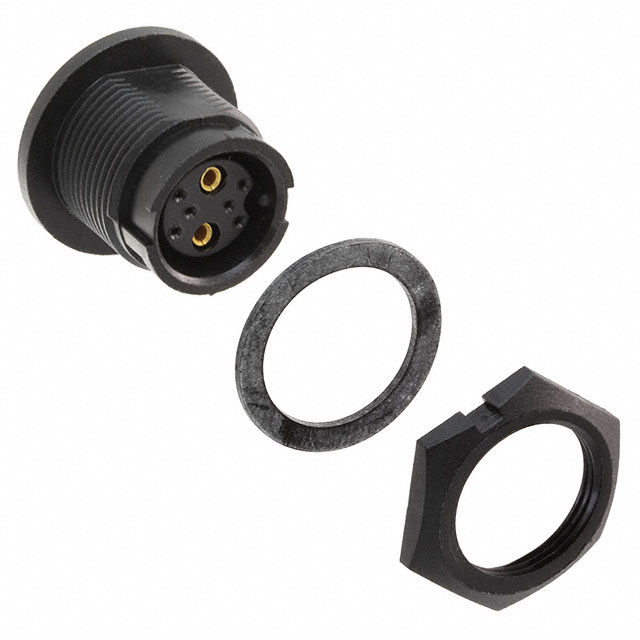

8 (6 + 2 Power) Position Circular Connector Receptacle, Female Sockets Solder Cup
