3099-16-1-0500-010-1-TS

Obsolete

CnC Tech, LLC

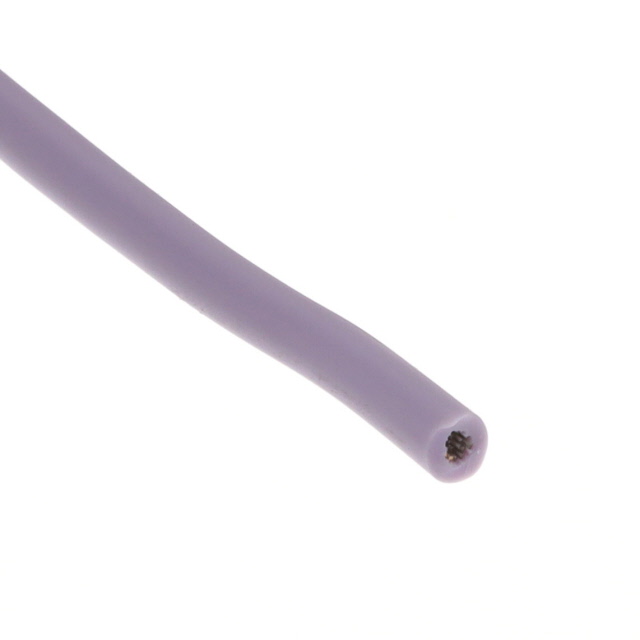

HOOK-UP STRND 16AWG VIOLET 50'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3099-16-1-0500-010-1-TS

Obsolete

CnC Tech, LLC

HOOK-UP STRND 16AWG VIOLET 50'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3099-16-1-0500-010-1-TS

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	26
Conductor Strand [diameter]	0.01 in
Features	Oil Resistant, High Temperature
Jacket (Insulation) Diameter [diameter]	3.2 mm
Jacket (Insulation) Diameter [diameter]	0.126 in
Jacket (Insulation) Material	Silicone Rubber
Jacket (Insulation) Thickness	0.8 mm
Jacket (Insulation) Thickness	0.031 in
Jacket Color	Violet
Length	15.24 m, 76.2 m
Length	3000 "
Length [x]	50 ft
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 3099
Voltage	300 V
Wire Gauge	16 AWG

3099-16 Series

Part	Conductor Strand [custom]	Conductor Strand [diameter]	Jacket Color	Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	Ratings	Wire Gauge	Conductor Material	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Features	Jacket (Insulation) Material	Length
CnC Tech, LLC 3099-16-1-0500-007-1-TS	26	0.01 in	Green	300 V	150 °C	-30 ░C	25 ft 50 ft 100 ft	7.62 m 30.5 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber
CnC Tech, LLC 3099-16-1-0500-001-1-TS	26	0.01 in	Black	300 V	150 °C	-30 ░C	25 ft 50 ft 100 ft	7.62 m 30.5 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber
CnC Tech, LLC 3099-16-1-0500-011-1-TS	26	0.01 in	Green Yellow	300 V	150 °C	-30 ░C	25 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	76.2 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber	3000 "
CnC Tech, LLC 3099-16-1-0500-006-1-TS	26	0.01 in	Brown	300 V	150 °C	-30 ░C	25 ft 100 ft	7.62 m 30.5 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	76.2 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber	3000 "
CnC Tech, LLC 3099-16-1-0500-008-1-TS	26	0.01 in	Orange	300 V	150 °C	-30 ░C	25 ft 50 ft 100 ft	7.62 m 30.5 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber
CnC Tech, LLC 3099-16-1-0500-010-1-TS	26	0.01 in	Violet	300 V	150 °C	-30 ░C	50 ft		UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m 76.2 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber	3000 "
CnC Tech, LLC 3099-16-1-0500-004-1-TS	26	0.01 in	Red	300 V	150 °C	-30 ░C	25 ft 50 ft 100 ft 500 '	7.62 m 30.5 m 152.4 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m 76.2 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber	3000 "
CnC Tech, LLC 3099-16-1-0500-002-1-TS	26	0.01 in		300 V	150 °C	-30 ░C	25 ft 50 ft 100 ft	7.62 m 30.5 m	UL Style 3099	16 AWG	Copper Tinned	Hook-Up	3.2 mm	0.126 in	15.24 m 76.2 m	0.8 mm	0.031 in	High Temperature Oil Resistant	Silicone Rubber	3000 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 29.19
		1	$ 121.71
		2	$ 27.82
		2	$ 115.31
		4	$ 110.32
		5	$ 26.14
		10	$ 103.20
		10	$ 24.76
		20	$ 23.69
		20	$ 98.22
		40	$ 93.24
		50	$ 22.16
		100	$ 21.09
		100	$ 92.53
		200	$ 20.02
		500	$ 19.87

Description

General part information

3099-16 Series

16 AWG Hook-Up Wire 26/0.0100" Violet 300V 50.00' (15.24m)
