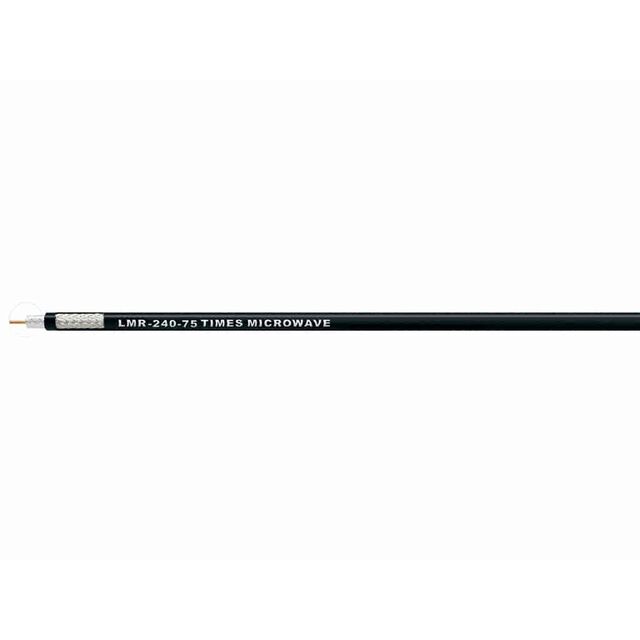

LMR-240-75

Active

Amphenol Times Microwave Systems

STANDARD CABLE, BLACK PE JACKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LMR-240-75

Active

Amphenol Times Microwave Systems

STANDARD CABLE, BLACK PE JACKET

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LMR-240-75

Cable Type	Coaxial
Conductor Material	Copper, Bare
Conductor Strand	Solid
Dielectric Diameter [diameter]	3.81 mm
Dielectric Diameter [diameter]	0.15 in
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.24 in
Jacket (Insulation) Diameter [diameter]	6.1 mm
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Material	Copper, Tinned, Aluminum
Shield Type	Braid
VoP, Velocity of Propagation	84

LMR-240 Series

Part	Shield Material	Operating Temperature [Max]	Operating Temperature [Min]	Conductor Strand	Cable Type	Dielectric Material	VoP, Velocity of Propagation	Length	Length	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Features	Length [x]	Length [x]	Conductor Material	Impedance	Shield Type	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Jacket (Insulation) Material	Usage
Amphenol Times Microwave Systems LMR-240-DB	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	83	15.24 m 76.2 m	50 ft 3000 "	0.24 in	6.1 mm	Black	Direct Burial Watertight	10 ft 100 ft	3.05 m 30.48 m	Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE)
Amphenol Times Microwave Systems LMR-240-75-LSZH	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	84			0.24 in	6.1 mm	Black				Copper Bare	75 Ohms	Braid	3.81 mm	0.15 in	Low Smoke Zero Halogen (LSZH) Polyethylene (PE)
Amphenol Times Microwave Systems LMR-240-MA	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	83	15.24 m	50 ft	0.24 in	6.1 mm	Black		100 ft	30.48 m	Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Poly-Vinyl Chloride (PVC)	Antenna
Amphenol Times Microwave Systems LMR-240-FR	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial - Riser	Foam Polyethylene (FPE)	83	15.24 m 76.2 m	50 ft 3000 "	0.24 in	6.1 mm	Black	Fire Retardant	10 ft 100 ft	3.05 m 30.48 m	Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE) Riser
Amphenol Times Microwave Systems LMR-240-UF	Aluminum Copper Tinned	85 °C	-40 °C		Coaxial	Foam Polyethylene (FPE)	80	15.24 m 76.2 m	50 ft 3000 "	0.24 in	6.1 mm	Black		10 ft 100 ft	3.05 m 30.48 m	Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Thermoplastic Elastomer (TPE)
Amphenol Times Microwave Systems LMR-240-PVC-W	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	83			0.24 in	6.1 mm					Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Poly-Vinyl Chloride (PVC)
Amphenol Times Microwave Systems LMR-240	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	83	15.24 m 76.2 m	50 ft 3000 "	0.24 in	6.1 mm	Black		10 ft 100 ft	3.05 m 30.48 m	Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE)
Amphenol Times Microwave Systems LMR-240-UF-FR	Aluminum Copper Tinned	85 °C	-40 °C		Coaxial	Foam Polyethylene (FPE)	80	152.4 m	6000 in	0.24 in	6.1 mm	Black	Fire Retardant			Copper Bare	50 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE) Riser
Amphenol Times Microwave Systems LMR-240-75-FR	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	84			0.24 in	6.1 mm	Black	Fire Retardant			Copper Bare	75 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE)
Amphenol Times Microwave Systems LMR-240-75	Aluminum Copper Tinned	85 °C	-40 °C	Solid	Coaxial	Foam Polyethylene (FPE)	84			0.24 in	6.1 mm	Black				Copper Bare	75 Ohms	Braid	3.81 mm	0.15 in	Polyethylene (PE)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.97

Description

General part information

LMR-240 Series

Coaxial Cable 75 Ohms
